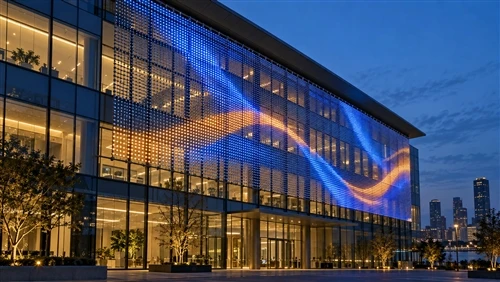

How Does an LED Mesh Screen Work?
An LED mesh screen works by arranging light-emitting pixels on an open, lightweight structure rather than covering the entire display surface with enclosed LED cabinets, as in a conventional LED display.
When viewed from the intended viewing distance, these LED pixels still combine to form a complete digital image, while a large portion of the physical area between the pixels remains open.
This combination of light-emitting pixels and open space allows an LED mesh screen for building facade to display large-format video content while maintaining a degree of transparency, airflow, and visibility of the original building facade.
To understand how the system works, it helps to look at three aspects: the LED pixel structure, the open spacing between pixels, and the way video signals are distributed across the display system.
LED Pixel Structure
The basic structure of an LED mesh screen begins with the LED pixel.
Each pixel is a visible point of light within the image. When many pixels are arranged in a defined pattern, they can reproduce text, graphics, and moving video.
Unlike a conventional LED display, where the pixels are mounted inside a complete cabinet, an LED mesh screen typically arranges its pixels along LED point-light elements supported by a steel cable or wire-rope structure.
Multiple LED point-light elements can be combined into a module or display unit, and multiple display units can then be connected to cover a large building facade.
Another important concept is pixel pitch, which is the center-to-center distance between adjacent pixels.
A smaller pixel pitch places the pixels more closely together, increasing pixel density and allowing the display to reproduce finer image detail.
A larger pixel pitch creates a more open pixel layout and is generally more suitable for large building-facade displays viewed from longer distances.
For large facade projects, the final image is not produced by one oversized display panel. Instead, a large number of standardized, repeatable display modules work together to form a continuous display surface.
The key point, however, is not simply that the LEDs emit light. It is that a substantial amount of open space remains between the light-emitting components.
Why Can an LED Mesh Screen Remain Transparent?
The transparency of an LED mesh screen comes from the fact that its electronic components and structural elements occupy only part of the facade area.
Unlike a solid LED cabinet, a transparent LED mesh screen leaves visible gaps between the pixels.
These gaps form the display's open structure.
Light can pass through these open areas, allowing people inside the building to retain a degree of outward visibility. Air can also pass through the display rather than being blocked by a completely solid surface.
The amount of open area is closely related to pixel pitch.
As the spacing between adjacent pixels increases, a larger proportion of the overall display surface remains unobstructed.
When the pixels are arranged more densely, a greater portion of the facade is occupied by display components.
This creates an important trade-off: higher transparency generally means lower pixel density, while higher pixel density can provide more image detail but usually reduces the open area.
For this reason, a higher transparency percentage is not automatically better.
The appropriate configuration depends on several project conditions, including:
Viewing distance
Required image resolution
Facade design
The degree of visual openness the project needs to preserve
The open structure can also reduce how much the display visually obstructs the original facade.
At the same time, because part of the airflow can pass through the open spaces in the screen, its interaction with wind differs from that of a fully enclosed solid LED display.
How Does Video Content Reach the Facade?
The signal path of an LED mesh screen can be simplified as:
Content Source → Media Player → Sending/Control System → Receiving System → LED Display Modules
The process begins with the content source.
The source may be a video file, animation, advertising playlist, live video feed, or another type of dynamic visual signal.
The media player stores or plays this content and outputs the video signal required by the display system.
The signal then enters an LED display controller or sending system.
This system processes the incoming image and divides the full picture into different data regions so that the correct image information is delivered to the corresponding areas of the display.
The receiving system then distributes the data to the relevant LED modules.
Each module displays its assigned portion of the image. When all modules operate in synchronization, they form one continuous large-format display surface.
To viewers standing in front of the building, the result appears as a single continuous facade animation.
Behind that image, however, the LED mesh facade control system is coordinating a large number of independent display zones in real time.
This combination of an open physical structure and a modular display system is one of the main reasons LED mesh technology is well suited to large building-facade projects.
Why Are LED Mesh Screens Used on Building Facades?
Building facades impose very different requirements on LED display systems compared with standard indoor displays or freestanding outdoor LED screens.
A large digital display may need to cover hundreds or even thousands of square meters, while the building must still continue to function as a building.
Natural daylight, views between indoors and outdoors, structural loading, maintenance access, architectural appearance, and the existing facade structure all remain important considerations.
This is where LED mesh changes the way a digital facade can be designed.
Instead of treating the facade as a flat surface that must be completely covered by a solid display, LED mesh makes it possible to add digital media while reducing the visual and structural impact on the building.
For architects and facade engineers, the value is not simply that the system is 'transparent' or 'lightweight.'
What matters is how those characteristics affect the building as a whole.
One of the main concerns when installing a large LED display on a building is its impact on the original facade.
This is especially important for glass curtain walls, where daylight, outward views, and the visual relationship between the interior and exterior are often integral to the architectural concept.
A conventional solid LED cabinet can cover a large area of glazing, reducing daylight penetration while also blocking outward views for office users, residents, or other occupants behind the display.
An outdoor LED mesh display used on a glass curtain wall can create a different result.
Because a significant proportion of the display area remains open, the building can support large-scale digital content while preserving more daylight and a degree of outward visibility.
This benefit remains relevant when the display is switched off.
A fully opaque LED display may still remain a dominant visual object on the facade even when it is not operating.
An open LED mesh system has a lighter architectural presence, allowing more of the original glazing, facade finishes, and geometric lines to remain visible.
For a transparent media facade, this can reduce the conflict between digital media and the building's original architectural function.
The display becomes more like an additional digital media layer applied to the building rather than a completely opaque surface placed in front of it.
As display area increases, system weight becomes increasingly important.
For a small display, a difference of several kilograms per square meter may not appear significant.
However, when the facade area reaches hundreds or thousands of square meters, that difference is multiplied across the entire installation and can result in a substantial change in total dead load.
From an engineering perspective, LED mesh screen weight is therefore an important project consideration.
A lighter display system can reduce the load transferred through steel cables, mounting components, and ultimately into the primary building structure.
In some projects, this may reduce the amount of secondary mounting hardware required or lower the additional structural demands placed on the existing facade.
Weight also affects construction logistics.
Heavier display components may require:
Larger lifting equipment
More installation labor
More complex high-level handling and positioning procedures
Lightweight modules are generally easier to transport, move, position, and install across large facade areas.
This difference can be particularly important in retrofit projects.
An existing building may not have been designed to accommodate the additional load of a large conventional LED cabinet system.
A lower-weight LED mesh system may increase the feasibility of converting an existing building into a media facade, although the final design must still be reviewed and confirmed by the project's structural and facade engineers.
Potentially Lower Wind Resistance Than Conventional LED Cabinets
Wind load is a critical engineering consideration for large display systems installed on building facades.
A solid LED cabinet creates a relatively continuous wind-facing surface, so a greater proportion of wind pressure is transferred to the display structure, supporting frame, anchors, and ultimately the building itself.
An open LED mesh system interacts with wind differently.
Because part of the display area is physically open, some air can pass through the gaps in the screen instead of acting entirely on a solid surface.
As a result, compared with a fully enclosed LED cabinet of the same projected area, an LED mesh system may reduce the effective wind resistance of the display.
For large building-facade projects, this difference can be significant.
Daytime Facade Visibility
In building-facade projects, 'daytime visibility' can refer to two completely different issues:
First, how much of the building itself remains visually open and visible during the day.
Second, whether the LED content remains sufficiently visible under daytime ambient-light conditions.
These two performance factors should not be confused.
From an architectural perspective, LED mesh can preserve more of the original facade because a large portion of the installation area remains open.
When the LED mesh display is switched off, more of the glazing, facade finishes, and structural lines can remain visible compared with a solid LED cabinet.
On glass curtain walls, the open structure can also allow more natural light to enter the interior and reduce the sense that the facade has been completely blocked.
The daytime visibility of the LED content itself, however, is a separate issue.
Daytime display performance depends on:
Ambient light intensity
LED brightness
Viewing direction
Contrast
Facade orientation
Whether the display is exposed to direct sunlight
High transparency does not automatically mean the image will be more visible during the day.
Do not confuse transparency with daytime display visibility.
Transparency describes how physically or visually open the facade remains.
Daytime display performance describes whether the LED image can maintain sufficient visibility against surrounding ambient light.
This distinction is important during system selection.
A project may require both high architectural transparency and strong daytime display performance, but those goals must be balanced through pixel configuration, brightness, installation orientation, and content design rather than assuming that one characteristic automatically delivers the other.
Large-Format Media Display Capability
A large LED facade is not simply a conventional LED screen scaled up in size.
Once a project reaches several hundred square meters, the display system must work together with the building rather than behave like a large freestanding screen attached to its surface.
This is where an LED mesh facade can provide practical advantages.
Its modular structure can expand across very wide or tall building elevations without requiring the facade to become one continuous solid cabinet surface.
At the same time, lower dead load and an open structure can reduce some of the structural and architectural impacts created by covering large facade areas.
Viewing distance is also important.
Large facade displays are commonly viewed from streets, plazas, or surrounding buildings rather than from only a few meters away.
Because viewers are farther away, the project can often use a larger pixel pitch while still achieving the intended visual effect.
This allows a larger building surface to be covered with fewer pixels per square meter than would typically be required for a close-viewing LED display.
Architectural integration is another reason LED mesh systems are suitable for large projects.
Maintenance can also be divided by module or by facade zone.
Instead of treating the entire elevation as one oversized screen, individual areas can be inspected, replaced, or serviced according to the system design.
For large projects, therefore, the advantage is not simply that the display can be made very large.
The real advantage is the ability to scale the display area while still managing weight, openness, viewing requirements, architectural integration, and maintenance complexity.
LED Mesh vs. Conventional LED Cabinets
|
Comparison Factor |
LED Mesh |
Conventional LED Cabinet |
|
Structure |
Open pixel-based modular mesh structure |
Enclosed or semi-enclosed cabinet structure |
|
Transparency |
Open areas allow a degree of visibility and airflow through the display |
Typically opaque or largely enclosed |
|
Weight |
Generally lower weight per square meter |
Typically heavier because of cabinet frames and enclosures |
|
Typical Pixel Pitch |
Usually larger, especially for building facades viewed from longer distances |
Can generally achieve smaller pixel pitches for closer viewing and higher pixel density |
|
Wind-Load Behavior |
Open areas allow part of the airflow to pass through |
Solid surfaces are exposed to a greater portion of the wind action |
|
Viewing Distance |
Well suited to medium- and long-distance viewing |
Commonly used for closer viewing or more controlled display environments |
|
Maintenance |
Can be serviced by pixel unit, module, or facade zone depending on design |
Typically serviced by cabinet or panel |
|
Typical Projects |
Building facades, media architecture, and large outdoor architectural surfaces |
Conventional outdoor LED screens, billboards, indoor displays, and fixed-format display systems |
The most suitable system still depends on the building conditions, viewing environment, structural limitations, and overall project objectives.
These differences only become meaningful when they are evaluated in the context of a specific architectural application.
Which LED Mesh Specifications Actually Matter?
An LED mesh screen specification sheet may contain dozens of technical parameters, but not every specification carries the same importance for every project.
The real question is not:
"Which screen has the better specifications?"
The better question is:
"Which specifications will actually affect this building-facade project?"
For example, a smaller pixel pitch may improve image detail, but it can also reduce the open area of the display.
Higher brightness can improve visibility under strong ambient light, but it may also increase power requirements.
For a retrofit facade project, lower weight may be especially important.
If the facade is frequently filmed for television, live streaming, photography, or professional video, refresh rate may become a critical specification.
For this reason, key technical parameters should be evaluated in relation to actual project conditions rather than compared in isolation.
|
Specification |
Why It Matters |
What Should the Project Ask? |
|
Pixel Pitch |
Determines pixel density and influences image detail at different viewing distances |
How far will viewers be from the screen? |
|
Transparency |
Affects daylight penetration, outward visibility, and how open the original facade remains |
How much transparency does the building need to preserve? |
|
Brightness |
Determines how visible the content remains under ambient-light conditions |
Is the screen behind glass, in shade, or directly exposed to outdoor sunlight? |
|
Weight |
Adds dead load to brackets, secondary steelwork, anchor points, and the primary building structure |
Is this a new-build project or a retrofit? |
|
IP Rating |
Indicates the enclosure's level of protection against dust and water ingress |
Will the system remain permanently exposed to outdoor conditions? |
|
Refresh Rate |
Influences how the display performs when captured by cameras |
Will the facade appear in television broadcasts, livestreams, photography, or video production? |
|
Power Consumption |
Affects the electrical system, operating cost, heat generation, and long-term energy planning |
How much electrical capacity is available for the installation? |
These specifications are interconnected.
Choosing an LED mesh screen based on a single headline specification can therefore be misleading.
LED Mesh Screen Project Case
A valuable LED Mesh case should illustrate:
How real building conditions are transformed into specific display system configurations.
The key should not only be that the project looks stunning, but also explain why a certain pixel spacing, transparency, installation method, and control architecture were ultimately chosen.
Project Parameters
Project location: Kazakhstan
Building Type: Bank Building
Display area: 1500 m ²
Pixel spacing: *P50 mm
Transparency rate: 58.3%
Weight: 4.9 kg/m ²
Brightness: 6000 nits
Installation method: Steel wire rope installation
Control System: Nova Control System
1. Project background
The project involves installing a large LED Mesh building facade on a bank building in Almaty, Kazakhstan.
The display system is planned to cover approximately 1500 square meters and needs to be integrated with the original building facade instead of forming a completely opaque LED wall.
The main viewing area is about 50m away from the building, while other viewing positions include roads/squares/surrounding buildings/pedestrian areas.
The content includes [large-scale advertisements/architectural animations/tenant information/event visuals/programmatic media content].
Therefore, the system needs to provide sufficient image details while avoiding unnecessary high pixel density.
2. Project restrictions
The building facade adopts [glass curtain wall/finish/structural grid], so the LED installation system needs to preserve [natural lighting/external view/building lines/ventilation] as much as possible.
Due to the large display area and installation at [installation height], structural load is also an important factor.
The installation system needs to be coordinated with existing fixed points, while controlling the additional dead load and steel wire rope load-bearing within the allowable range of the project engineering.
Before determining the module layout, also consider:
Wind load;
Cable layout;
Waterproof;
Long term maintenance channel
An evaluation has been conducted.
The project team not only considers how to install, but also anticipates how technicians will approach and repair each module after installation is completed.
3. Final configuration
The final system adopts LED Mesh with a pixel spacing of [P50], a transparency of about [58.3%], and a designed brightness of [6000nits].
The entire display system is divided into multiple modular areas based on the building facade grid.
Electricity and data are also distributed across multiple areas, rather than being centrally routed from one location across the entire building facade.
The installation structure adopts [Steel wire rope installation].
Why did you choose this configuration?
The final pixel spacing is mainly determined based on the viewing distance and content type of the project.
Due to the distance between the main audience and the building, although smaller pixel spacing can increase pixel density and system cost, it may not necessarily produce the same proportion of visual improvement from the main viewing position.
The transparency is determined based on the indoor view/natural lighting/building openness that the building needs to preserve.
A denser display system can increase image details, but at the same time, it will also increase occlusion of building facades.
The brightness is designed based on the orientation of the building and ambient lighting conditions, rather than simply selecting the highest output brightness.
Therefore, the final configuration is actually a balance between the following factors:
Image details, transparency, structural impact, operational requirements, and project budget.
4. Installation and Control Plan
The entire display system is divided into multiple installation areas based on the actual construction channels and structural conditions of the building.
The installation structure transfers loads through anchoring/secondary steel structure/structural fixation methods, rather than relying on building facade components that are not suitable for load-bearing.
The power supply and distribution equipment are installed in the [maintainable area/technical area].
Power and data cables are arranged according to pre planned paths so that they can access connectors and connection points in the future.
The content control path is:
Content source → Media player → Sending/control system → Receiving system → LED Mesh module
The system supports:
[Scheduled playback/Building synchronization content/Remote management/Real time signal input].
5. Project Results
After debugging, the entire system forms an effective display area of approximately [XXX m ²] while maintaining the required building transparency for the project.
From the main viewing distance, the selected pixel spacing can provide sufficient image clarity for the planned content.
From the inside of the building, the open structure retains [natural lighting/partial outward view] according to design requirements.
Modular design also ensures that the display area, power supply, and data devices can be repaired through scheduled maintenance methods.
Therefore, the project results can be evaluated through specific indicators:
Display area, viewing effect, transparency, structural integration, maintenance channel, and system operation capability.
Instead of relying solely on subjective descriptions such as' visually stunning '.
6. Project experience
The most important experience of this project is:
LED technology specifications cannot be considered separately from building facade design.
The viewing distance determines the pixel spacing.
The conditions of the curtain wall or finish affect the transparency and installation method.
The installation height affects wind loads and construction channels.
The maintenance strategy affects module partitioning and device placement.
The project also states to coordinate before starting production:
Structure;
Electrical;
Control;
Maintenance
Very important.
For similar projects, if we can obtain:
Architectural elevation drawing;
Structural data;
Viewing distance;
Maintenance requirements;
This can significantly improve the accuracy of the initial LED solution.
View more similar building facade projects and learn how different buildings choose different LED Mesh systems based on viewing distance, transparency, installation method, and environmental conditions.
Is an LED Mesh Screen Right for Your Facade Project?
Choosing the right transparent LED mesh screen is not about finding the product with the smallest pixel pitch, highest brightness, or highest transparency on a specification sheet. The right configuration depends on how the display needs to work with the building.
Viewing distance determines how much image detail is actually necessary. Transparency affects how much of the original facade, daylight, and outward visibility should remain. Ambient light influences the brightness requirement, while facade load, outdoor exposure, mounting conditions, and maintenance access can directly affect whether a proposed system is practical to install and operate.
For this reason, an LED mesh screen should be selected as part of the overall facade design rather than as a standalone display product.
LED Mesh May Be a Good Fit If…
An LED mesh system is particularly worth considering when the facade is mainly viewed from medium or long distances, the building needs to retain a degree of visual openness, display weight is an important structural consideration, or the project requires digital media coverage across a very large architectural surface.
It may not be the best solution when viewers will be extremely close and require very fine image detail, when transparency provides little practical value, or when the existing facade cannot accommodate the proposed mounting and maintenance method. In those cases, a conventional LED display, transparent LED screen, LED film, or another display technology may be more appropriate.
What Information Should You Prepare Before Selecting an LED Mesh Screen?
Before requesting an LED mesh screen specification or project quotation, prepare the basic conditions of the facade first:
Facade width and height
Approximate viewing distance
Project location
Indoor, behind-glass, or outdoor installation
Required level of transparency
Expected daytime viewing conditions
Available mounting structure or attachment points
Facade drawings, elevations, CAD files, renderings, or site photos
For more developed projects, information about power availability, content requirements, control systems, maintenance access, and local environmental conditions can also help refine the system design.
With these inputs, the project can move from a general product comparison to a more meaningful evaluation of pixel pitch, brightness, transparency, system layout, mounting method, control architecture, and preliminary project cost.
Get a Preliminary LED Mesh Configuration
If you are planning a media facade, glass curtain wall display, high-rise facade, or other large architectural LED project, the next step is to evaluate the display against the actual building conditions.
Send your facade dimensions, viewing distance, installation environment, and available drawings for a preliminary technical review. Based on the project requirements, an initial configuration can then be developed covering the recommended pixel pitch, suitable LED mesh system, brightness requirement, control solution, installation approach, and budgetary quotation.
