Shenzhen SHLED Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of waterproof rgbw led point lights in China, also supports customized service. Welcome to wholesale high quality waterproof rgbw led point lights at competitive price from our factory.
JD42 Configuration Selection
Point lighting for building outlines and pixel layouts. Select one complete configuration below; voltage, output and protocol belong to the same row.
ConfigurationsDimensionsWiringInstallationSystem & accessoriesDocuments
| Light output | Control | Supply voltage | Rated power |
|---|---|---|---|
| RGB | DMX512 | 24V DC | 1.4W/fixture |
| RGB | TTL | 24V DC | 1.4W/fixture |
| RGBW | DMX512 | 24V DC | 1.8W/fixture |
| RGBW | TTL | 24V DC | 1.8W/fixture |
| White | ON/OFF | 24V DC | 1.2W/fixture |
| White | DMX512 | 24V DC | 1.4W/fixture |
Configuration basis: SHLED selection guide dated November 14, 2025, cross-checked against the JD42 Product Manual, page 5. Lens, housing, white-light CCT, cable length and mounting arrangement are selected with the quotation. Product drawings below are reference drawings; use the drawing for the supplied variant.
JD42: Selection & Technical Documents
Series: Pixel Dot
Best suited to: Architectural outlines, discrete pixel layouts and custom media patterns.
Choose by: Fixture size, RGB/RGBW/white output, protocol, spacing and mounting method.
Installation environment: Installations matching the selected fixture, cable and connector configuration.
Model Documents
- Specification: A42A07 reference specification (PDF). The file label differs from JD42 on this page; confirm applicability before use.
- Dimensions: Product dimension illustration.
- Installation & wiring: Wiring illustration · Mounting illustrations. Confirm the pinout and instructions for the exact variant.
- Applicable certification: Request the report for this exact model and configuration.
- Document revision: The reference PDF has no stated revision/date. Request the approved JD42 file and confirm the A42A07 naming relationship.
Bridge lighting application projects · Compare this product series · Technical document index
Project links are application references; confirm the installed model for a specific project. Need drawings or approved files? Send your model and project requirements. Content reviewed: November 6, 2026; this is not a product revision date.
System & Accessories
- Match the controller output to DMX512, TTL or ON/OFF as specified for the selected fixture.
- Confirm supply voltage, circuit load, cable length, voltage drop and feed locations in the project configuration.
- Confirm connector pinout, cable specification and environmental sealing before selecting extensions or adapters.
- Confirm the mounting accessory, fixing method and supporting structure against the supplied drawing.
SHLED supplies products, system configuration and technical support within the agreed scope. Site installation and construction responsibilities are agreed with the project contractor.
Discuss a JD42 ConfigurationProduct Features
1. Features: Multiple synchronous changes can be programmed and controlled arbitrarily, and full-color changing effects such as synchronous colorful, jumping, scanning, and flowing water can be realized. Multiple waterproof rgbw led point lights can also form a led mesh screen to change various pictures, texts, and animations. effect, etc.; has the characteristics of low power, long life and so on.
2. Diversity of use occasions: waterproof rgbw led point lights can not only be used for dot matrix display screens, but also for the outlines of buildings, bridges and other buildings in urban lighting projects, and interior decoration lighting projects in entertainment venues such as hotels and hotels.
Specification
![]() |
product name | LED Point Lights-JD42 | |||||
| voltage | 24V | 24V | 24V | 24V | 24V | 24V | |
| Power | 1.4W | 1.4W | 1.8W | 1.8W | 1.2W | 1.4W | |
| Control mode | DMX | TTL | DMX | TTL | ON/OFF | DMX | |
| Emitting color | RGB | RGB | RGBW | RGBW | White | White | |
| IP Grade | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | |
| Color temperature | / | / | 3000K 4000K 5700K |
||||
| LED Qty | 3535RGB*6 | 3535RGB*6 | 3535RGB*6+2835W*2 | 3535RGB*6+2835W*2 | 2835W*6 | 2835W*6 | |
| Product diameter | 42mm | ||||||
| Product color |
black/grey |
||||||
Product size chart

Wiring diagram

Installation diagram

There are four ways to install the waterproof rgbw led point lights product, and you can choose the appropriate installation method according to the application scenario.
Application

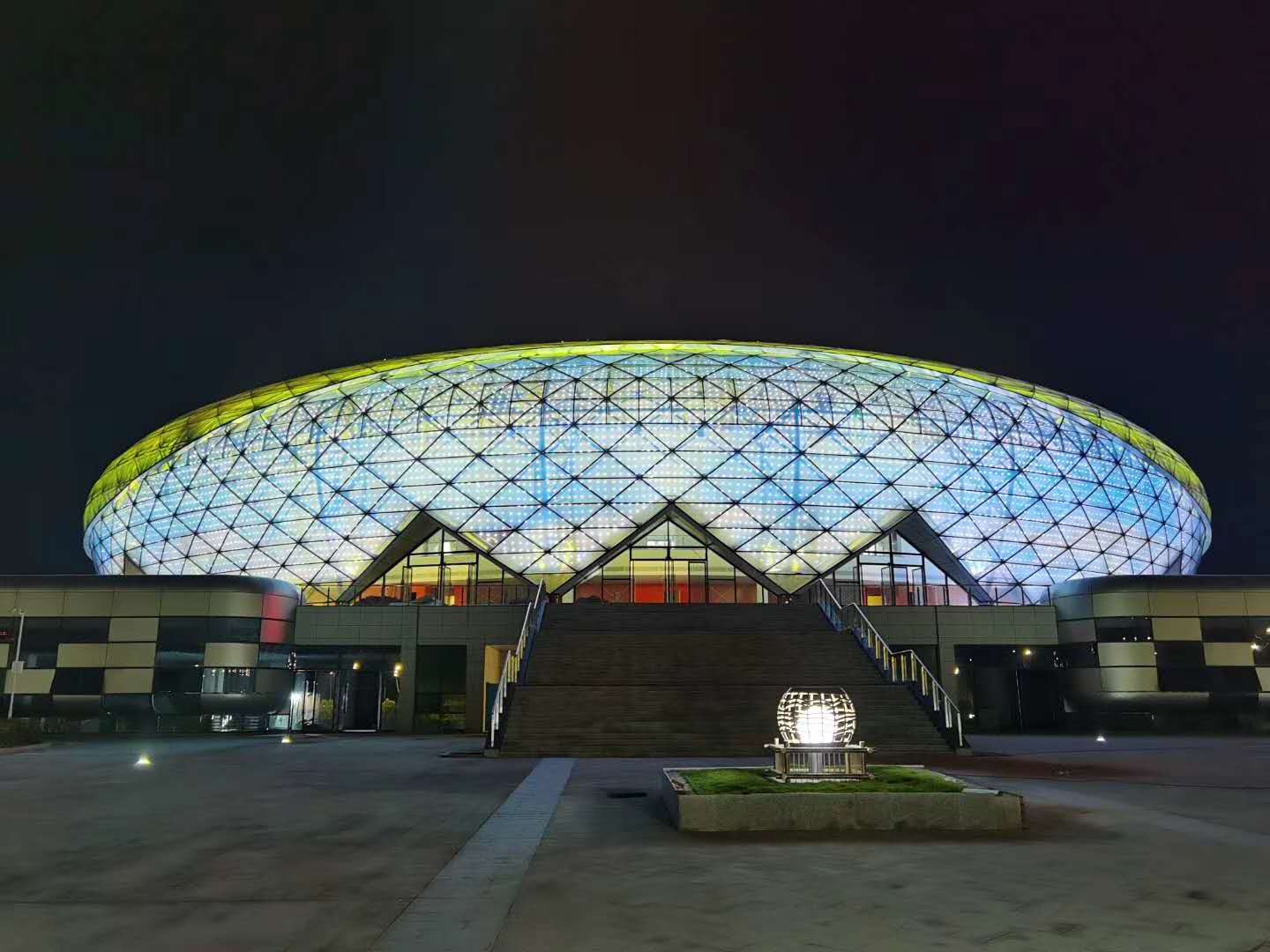

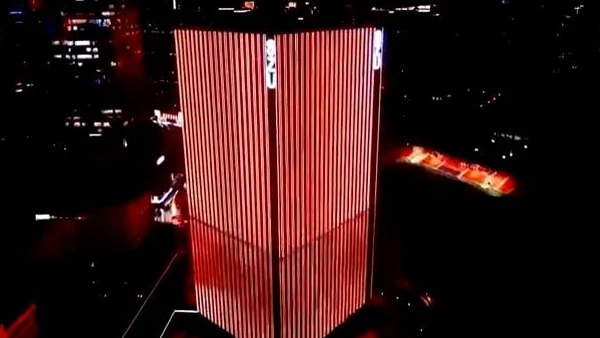

Diversity of use occasions: waterproof rgbw led point lights can not only be used for dot matrix display screens, but also for the outlines of buildings, bridges and other buildings in urban lighting projects, and interior decoration lighting projects in entertainment venues such as hotels and hotels.
