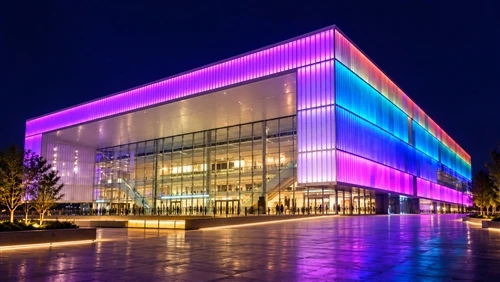

How to Choose LED Linear Facade Lighting: Effects, Fixtures and Installation

Start With the Facade, Not the Fixture

Before comparing fixtures, define the intended lighting effect, the main viewing positions, and the conditions that will govern installation.

Define the visual goal and viewing conditions

What should people notice first in the facade lighting effect: an evenly lit wall, the texture of the surface, or the building's outline? Identify the main goal as wall washing, grazing, or contour lighting before comparing fixtures.

Next, mark the main viewing directions and distances on a site photo or elevation. A facade viewed from across a road may need a different visual emphasis from the same facade seen by pedestrians at its entrance. Record the surrounding light level at night, and check whether occupants will see the fixtures through windows. Viewing distance alone does not determine how bright the lighting should be.

Record the site constraints

Record the facade and site conditions on a marked elevation and site photos before asking suppliers for a proposal.

Also record the project location and ask the local project team which approvals or requirements apply. Do not assume the same rules apply to every facade.

Choose the LED Linear Facade Lighting Effect That Fits the Wall

Wall washing for a broadly even surface

Choose wall washing when a broad facade should appear relatively even, with the architecture taking priority over pronounced shadows. The actual result depends on the wall finish and installation; "even" is a design goal, not a guarantee of identical brightness everywhere.

Check the finish and projections. Dark paint, light cladding, and reflective panels respond differently; projecting features may cast shadows. On long walls, assess whether the proposed layout produces visible patches or gaps from the main viewing position.

Wall grazing to reveal texture

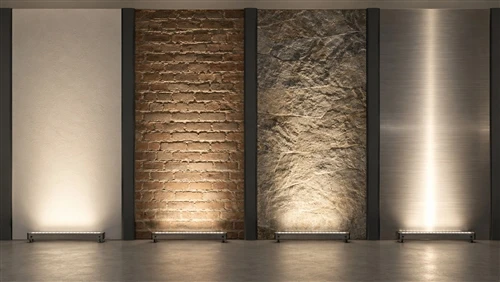

Grazing brings out the joints in brickwork, the edges of stone, and other surface relief. It suits a wall whose material is part of the design, provided the resulting shadows support the overall appearance.

Placing fixtures close to the wall makes small changes in depth more visible. It can also expose uneven mounting, inconsistent fixture alignment, or irregularities in the surface that the designer did not intend to emphasize.

Inspect a sample close to the wall and from the main viewing positions. Compare feasible mounting positions: shadows that look appealing in a small test area may appear uneven across the full facade.

Contour lighting to define edges

Choose facade contour lighting when the goal is to make the building's shape legible at night without illuminating the whole wall. It can trace a roofline, frame a row of columns, or carry a line around an architectural corner. The intended result is a clear, continuous edge from the main viewing positions.

Mark joints, corners, changes in mounting surface, and obstructions on the elevation. Test whether the line stops, jumps, or changes brightness at these points; in daylight, check whether fixtures and cables remain acceptably discreet.

Match the Effect to a Suitable Luminaire

Linear wall washers and linear facade lights

An outdoor linear wall washer is suited to a broad wall when the proposed optic and mounting position provide the required coverage. A rigid linear facade light may instead support grazing or a straight architectural line. Similar housings can produce different effects, so compare the actual optical configurations.

For the proposed model and optic, request photometric data, dimensions, installation and connection details. Compare them with the available mounting positions and service access. Neither an IP rating nor a power figure predicts how the wall will look.

Linear lights, neon flex and LED strips

Choose a product according to the required effect and the route it must follow across the building.

A flexible product may follow a curve, but it will not necessarily wash a tall wall evenly. For a visible line, test a representative joint or corner as well as a short straight section.

When another fixture type is a better fit

If light must reach a feature from a distant mounting point or create a focused accent, consider a floodlight or spotlight. For example, a linear light along a wall will not necessarily highlight a sculpture several meters away.

Check the Optical Layout Before Ordering

Beam distribution, wall height and mounting position

A stated beam angle does not establish how evenly the target area will be lit. Mark that area on the elevation, then compare the proposed fixture's beam distribution, mounting distance, aim, and any obstructions. Does the design need the full wall height or only a band above an entrance?

Draw a wall section for each feasible mounting position and check the proposed optic's photometric data. A nominal beam angle does not translate directly into coverage width or a uniform brightness pattern on the wall.

Compare feasible positions in a lighting simulation, then test a representative section on the actual wall where possible. Check the upper and lower edges, brightness transitions, and spill onto windows or adjacent surfaces from the agreed viewing positions.

Spacing, joints and visual continuity

One acceptable fixture does not guarantee a continuous effect across a run. Dark gaps can result from spacing or weak light at fixture ends; strong overlap can create bright patches. Corners and obstructions may interrupt a visible line.

Mark fixture ends, joints, corners, and changes in mounting surface on the layout. Allow for realistic installation tolerances rather than relying on perfect alignment.

Use photometric data to assess the proposed spacing, then test at least two fixtures and a representative joint or corner at night. From both the main viewing position and closer to the wall, check for repeated gaps, bright bands, and breaks in the line.

Color quality, glare and nighttime context

Test the proposed color temperature on the actual material. Paint, brick, stone, and metal may appear different under the same light. Compare the illuminated surface with nearby lighting under normal nighttime conditions.

From the main approach, across the street, and near the facade, check consistency between fixtures and glare from directly visible light sources, especially for pedestrians and occupants.

Photograph the same wall from the same position when comparing one changed variable, such as aim or color setting. Label simulations as simulations; a photograph alone does not establish technical performance.

Plan Power, Control and Outdoor Reliability Together

Treat the fixtures, power supplies, controls, cables, and outdoor connections as one installed system. Each part needs to work with the proposed layout.

Choose the supply arrangement for the actual run

Plan supply points and circuit divisions from the fixture load, run length, cable route, and conductor size. Calculate the voltage at the farthest fixtures, accounting for connections; a fixture's rated voltage alone does not establish a permissible run length.

If the product has both DC24V and DC48V versions, compare them using the same layout, load, cable route, conductor size, and acceptance criteria. Request electrical and connection data for each version, and verify losses and circuit limits before specifying either one.

Specify the control functions the project will use

Specify the operating schedule, dimming, zones, and any dynamic color effects the project actually requires. Verify each function and its supporting equipment for the exact fixture model; do not assume app control or dynamic effects are included.

Ask for a system diagram connecting the fixtures, supplies, controls, and planned circuits.

Protect the complete installed system

A fixture's IP rating applies to its tested enclosure configuration; it does not establish the protection of the whole installation. Check the proposed end caps, connectors, cable entries, site joints, supplies, and cable routes.

Compare installation instructions with a representative completed connection and verify that power supplies and replaceable components remain accessible.

Validate the Design and Supplier Proposal

Review drawings, photometry and a facade mock-up

Check that the drawings, simulation, sample, and quotation identify the same model, optic, fixture length, mounting position, and control configuration. A simulation or sample based on another configuration cannot verify the quoted installation.

View the sample on the intended material, at night and from the agreed positions. Record any differences from the drawings and resolve them before comparing prices. Label rendered images as simulations.

Compare quotations on the same scope

Compare quotations against the same approved layout and scope. Confirm fixture models, optics, lengths and quantities; supplies and controls; cables, connectors, end caps and brackets; spares, documents, services, and delivery terms. Mark each item as included, excluded, or to confirm.

Record substitutions beside the affected item, especially changes to the approved sample. Clarify bundled or blank entries before comparing totals.

Agree on acceptance and maintenance access

Before installation, agree on acceptance checks and viewing conditions using the approved sample and drawings. At handover, inspect brightness continuity, color, glare, required controls, connections, and maintenance access; record each issue, the action, and who will verify it. Set measurable criteria for this project rather than assuming one threshold suits every facade.

A Practical Selection Example

Illustrative scenario: A brick entrance wall has shallow columns. It is viewed from across the street and from a nearby walkway. The team wants visible brick texture without dominant shadows. Fixtures can sit at the wall base; the power supply must remain accessible.

The first sample uses close-mounted linear lights to graze the brick. From the walkway, however, the columns cast long, uneven shadows and the fixtures are directly visible. A close-up photograph of the brick would not reveal either problem.

The team tests another mounting position, optic, and aim. From the same viewing positions at night, the revised sample keeps the brick visible while reducing column shadows and glare. A two-fixture test also checks for a dark gap at the joint.

For ordering and handover, record the approved model and optic, lengths and spacing, mounting and aiming, circuit and connection diagrams, control settings, and sample photographs. You can contact SHLED for a quotation and detailed information

FAQ

Should I choose DC24V or DC48V linear lights for longer runs?

Compare the actual circuit calculations. At the same power, a compatible DC48V version draws less current than DC24V and may reduce cable losses, but allowable run length still depends on cable, load, connections, and product limits.

Can the same linear light illuminate both smooth and textured walls?

Yes, if its available optics and mounting positions suit both effects. A smooth wall usually calls for an even wash, while a textured wall may benefit from grazing light that reveals its surface.

What documents should I request before placing a bulk order?

Request the datasheet for the exact configuration, dimension and photometric file, wiring diagram, installation instructions, applicable test or certification documents, warranty terms, and an itemized quotation covering drivers, connectors and accessories.

Should I test a sample before ordering the full facade?

Yes. Test the intended fixture, optic, and controls on a representative section of the actual facade. Check brightness, color, glare, joints, and required control functions.

How do I avoid dark gaps between linear facade lights?

Check fixture-end distribution, spacing, mounting distance, and corners together. Review the proposed layout's photometric data and test a short run with at least one joint.
