SHLED New Product Launch | P25 Small Pitch LED Mesh Screen With High Transparency And Lightweight Design For All Weather Outdoor Display

With the continuous increase in outdoor construction media display projects abroad, many end customers and engineering companies frequently provide feedback in actual implementation projects that they need a P25 specification LED mesh screen with standard spacing, stable performance, and affordable cost. This screen can not only meet the needs of high-definition visual display, but also effectively control the overall investment cost of the project. By deeply listening to the front-line market demand and focusing on the actual pain points of engineering implementation, SHLED relies on years of experience in outdoor lighting and building display research and development production, completes targeted technical polishing and product shaping, and officially launches the SHLED E23 series P25 small pitch flexible mesh screen. With high comprehensive cost-effectiveness and versatile practical performance, it fully fills the product gap in the terminal outdoor building display market and accurately matches the landing needs of various small and medium-sized and commercial facade display projects.

As a professional outdoor mesh display screen positioned at P25 standard spacing, SHLED P25 has been built around three core directions of practicality, scenarization, and low cost since its inception, integrating mainstream high-quality configurations and mature stable technologies in the industry. The product comes with a high pass perspective effect, ultra light body weight, high standard outdoor protection performance, and 16 bit high grayscale display capability, with rich and delicate image levels; Built in stable and reliable breakpoint resume control protocol, even if there is a temporary fault in a local circuit or module, it will not affect the normal playback and operation of the entire screen, greatly improving the stability of project operation. At the same time, this grid screen has strong plasticity in overall installation, and the installation form can be flexibly adjusted on site. After completion, the original overall shape, exterior lines, and natural visual effects of the building will be preserved to the greatest extent possible, without damaging the overall design aesthetics of the building. The product is best suited for outdoor media playback scenarios at a medium to long distance of about 30 meters, with balanced color gamut performance. The image is clear and not white under strong sunlight, and the display color is pure and full at night. It truly achieves all-weather and stable visibility without discrimination, meeting the visual output requirements of commercial promotion at all times.

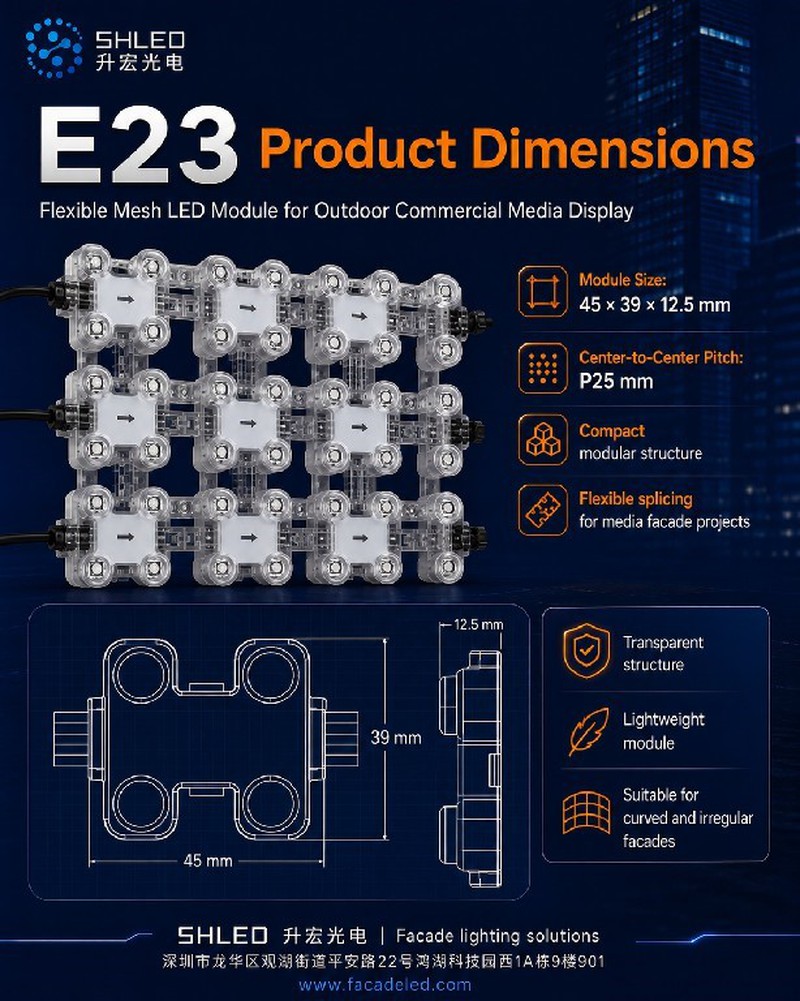

At the overall product structure design level, SHLED-P25 adopts a mature and stable modular point light source grid architecture, with a standardized single-mode group size of 45 × 39 × 12.5mm. The module center accurately maintains a P25 standard spacing, and the specifications are unified for easy batch stocking, on-site rapid assembly, and later batch replacement and maintenance. Compared to traditional heavy enclosed outdoor screens, P25 completely abandons bulky and complex structures, focusing on strengthening the four core advantages of transparency, lightweight and portable, flexible and bendable, and integrated building integration. It abandons redundant designs, simplifies structures, and reduces production costs. While ensuring the same quality, it further lowers product prices, making high-quality small pitch grid screens no longer limited to high-end large-scale projects, but widely applicable to mainstream application scenarios such as commercial media facades, urban landmark buildings, high-rise glass curtain walls, and urban public leisure spaces.

Five core practical advantages of the product

1, Ultra high transparency design, preserving the original style of the building
P25 adopts a hollow grid layout structure, with excellent transparency performance. After the equipment is installed on the wall as a whole, it will not obstruct the natural lighting of the building, and fully retain the original exterior design lines, overall shape, and spatial structure characteristics of the building. Applied on glass curtain wall buildings, it can balance indoor lighting needs with outdoor dynamic advertising display; When landing on the exterior of commercial complexes and irregular buildings, it can smoothly play high-definition dynamic videos, brand posters, promotional content, and naturally blend with the architectural style, achieving a harmonious unity between commercial display and architectural aesthetics.
2, Flexible and freely spliced, suitable for complex building forms of all categories
The exterior facades of real urban buildings are rarely standard flat planes, with a large number of projects featuring curved surfaces, building right angles, staggered structures, large sky canopies, irregular columns, and various irregular installation surfaces. SHLED P25 is built on high-quality flexible substrates and has excellent bending and bonding capabilities. It can tightly adhere to various complex building surfaces to complete seamless splicing and assembly, without being limited by building shapes. It greatly relaxes the creative design space of designers, simplifies on-site construction and installation processes, and easily solves the installation problems of outdoor large screens in various irregular buildings. Its adaptability covers the vast majority of non-standard building facade projects.
3, Extremely lightweight body, reducing building load and saving construction costs
The whole machine adopts a lightweight and streamlined structural design, with a much lower self weight than traditional outdoor display products of the same specifications, greatly reducing the overall load-bearing pressure of building walls and facade steel structures. Old buildings and lightweight curtain wall buildings can be installed and used with peace of mind. The lightweight feature not only simplifies multiple construction processes such as lifting, fixing, and splicing, effectively shortens the project construction period, reduces manual installation costs, but also makes it more convenient and labor-saving in daily inspections, fault repairs, module replacements, and other operation and maintenance work in the later stage. From early construction to long-term operation in the later stage of the project, it comprehensively helps customers compress overall investment costs.

4, High standard outdoor protection, all-weather stable and long-term operation
Outdoor display products are exposed to natural environments all year round, and need to face multiple harsh environmental tests such as rainwater invasion, humid air, sudden changes in high and low temperatures, long-term exposure to outdoor ultraviolet radiation, and high-altitude strong wind loads. SHLED P25 is built in strict accordance with the outdoor commercial standards. The whole machine has reached the IP67 high level of waterproof and dust-proof protection. The shell of the product is made of high-quality PC flame retardant materials, and the flame retardant grade has reached the 94-V0 safety standard. The fire resistance, sun resistance and aging resistance are outstanding; The normal and stable working temperature range of the product is -20 ℃ to+60 ℃, and it can be put into use normally in different climate regions in the north and south. It has strong weather resistance and can meet the continuous and stable operation needs of commercial projects all year round, reducing the frequency of fault repair and extending the overall service life of the product.

5, Dual specifications available, accurately matching different project requirements
To further enhance product adaptability, the E23 series has launched two different specification versions, E23-L and E23-H. Customers can flexibly choose and match according to the actual installation environment, daily viewing distance, screen brightness requirements, promotional content presentation effect, and overall project budget of the project. All products in the series come standard with RGB full-color high-definition display mode, paired with 16 bit high grayscale display technology. The color transition of the screen is natural and smooth, and the light and shadow layers are distinct, which is sufficient to meet the diverse outdoor visual communication needs such as commercial advertising placement, corporate brand image promotion, business district atmosphere creation, and urban landmark night scene creation.

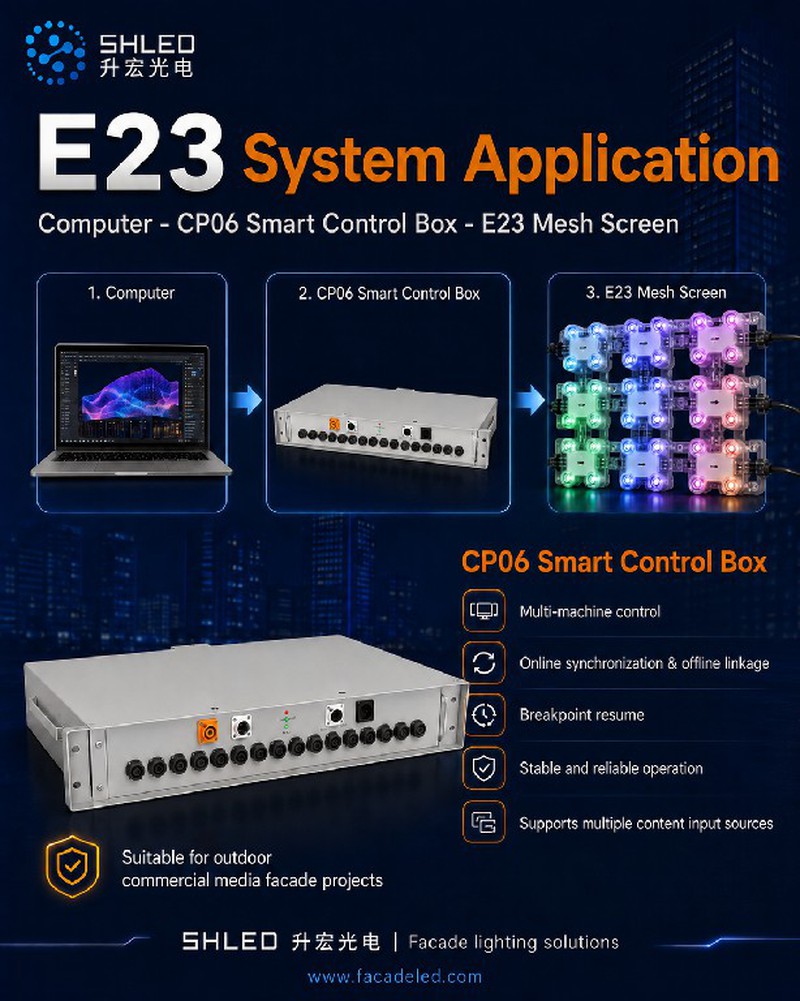

CP06 intelligent control box: making the system structure clearer
E23 can be paired with CP06 intelligent control box to form a clear system application logic: computer → CP06 intelligent control box → E23 flexible grid screen. This method is convenient for content transmission, signal control, project deployment, and post maintenance.

The CP06 intelligent control box can support AC110/220V input, DC24V output, rated power of 1400W, with 16 output ports, suitable for centralized control and stable operation of E23 outdoor commercial media display projects.

Where is the SHLED P25 LED grid screen suitable for use?

● Commercial facade: Place commercial advertisements, promote store traffic, and create festive atmosphere images to activate the commercial value of the business district;
● Urban core landmark buildings: Create exclusive urban characteristic night view visual signage to enhance the city's nighttime cultural and tourism image;
● Glass curtain wall media facade: Balancing building lighting and outdoor media functions, achieving diversified value utilization of commercial buildings;
●. Urban public space canopy: applied to pedestrian streets, citizen squares, and leisure parks to create an immersive outdoor visual atmosphere;
●Alien curved building facade: Suitable for various uniquely shaped buildings, achieving flexible fitting installation and creating creative outdoor visual screens.

Conclusion

In terms of the intrinsic value of the product, the core significance of the P25 flexible led mesh display screen is not only to achieve basic outdoor image playback functions, but also to help empower various urban building facades, endow buildings with new commercial media operation attributes, and transform static buildings into dynamic outdoor promotional media that can be flexibly operated and sustainably monetized. With high transparency, lightweight installation, flexible adaptability, sturdy outdoor protection, and a complete set of intelligent control systems, the P25 grid screen can assist major commercial buildings and urban public spaces, creating a new type of outdoor visual communication scene with stronger communication power, better visual effects, and lower investment costs.

In the future, SHLED will continue to deeply cultivate the two core areas of outdoor building facade lighting and commercial facade media display. We will always take the actual project needs of market customers as the core guidance for product research and development, adhere to the bottom line of quality, continuously optimize product structure and application solutions, and continuously launch more cost-effective, high stability, and easy to implement outdoor LED display products and integrated overall solutions. We will wholeheartedly help upgrade the lighting of building facades and promote the steady development of the outdoor commercial media industry in major cities across the country.
