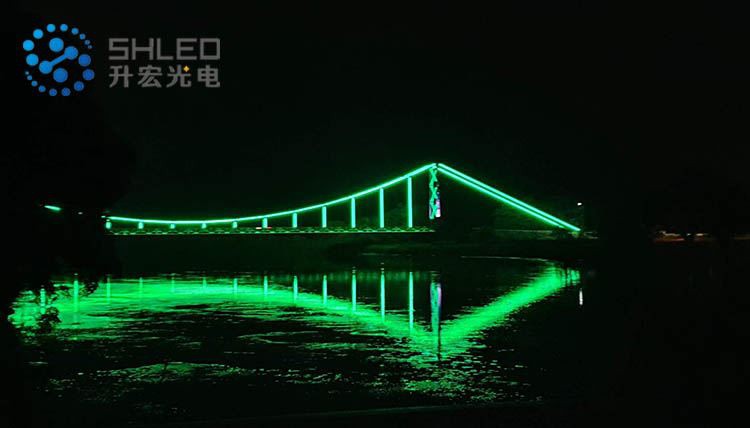

Ecuador Bridge Lighting Project
PUENTE G. ICAZA
Project Location: Provincia del Guayas, Ecuador
Completion Date: June, 2020
Lamps used in the Project: SH-A42 Led Pixel Dot + SH-022 LED Wall Washer
Control Method: DMX512
The bridge in the city connects us like a beautiful rainbow across the sky. With the deepening of urbanization process and infrastructure construction, the lighting design of bridges has been a hot spot for rapid development in recent years.
PUENTE G. ICAZA bridge lighting project use the SH-A42 LED PIXEL DOT and SHLED wall washer light.

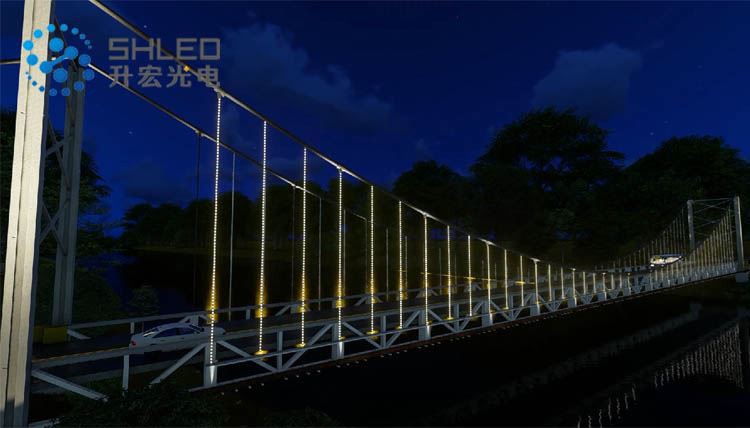

Lay a LED PIXEL DOT on the zipper, and fix the aluminum alloy track to the zipper through the stainless steel hoop.

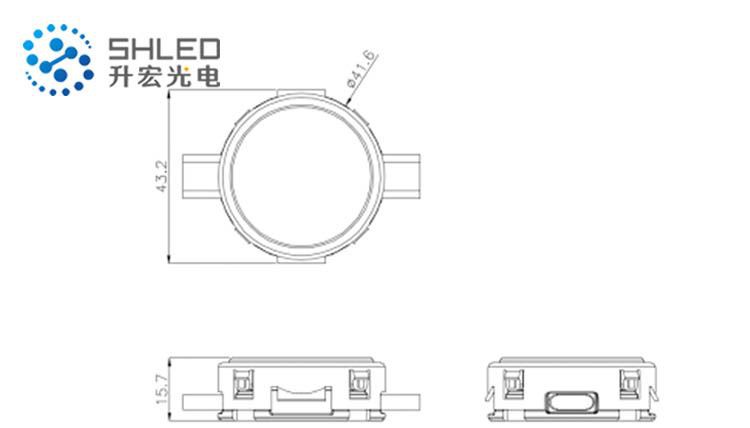

SHLED SH-A42 Led Pixel Dot
◇ Independent intellectual property rights, private model design, dedicated to engineering projects.
◇ It adopts special die-cast aluminum material with high mechanical strength and good heat dissipation performance.
◇ The high-brightness full-color lamp beads are used, and the illumination angle is large.
◇ It is made of PU glue and is not easy to crack, and the product protection level is high.
◇ The wire and outer casing are made of cold resistant, UV resistant and flame retardant materials, suitable for long-term outdoor use.
SHLED SH-022 Led Wall Washer Light

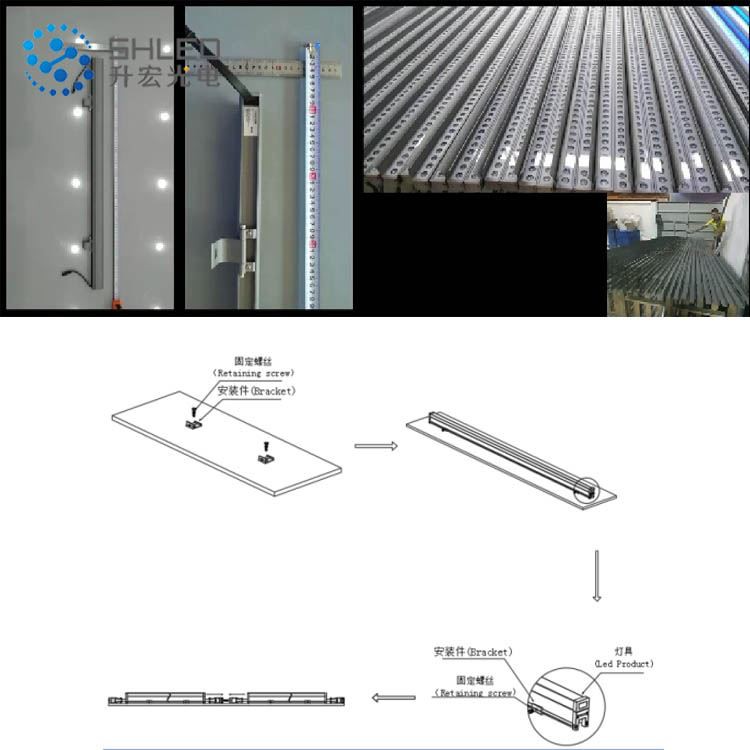

1. First, determine the installation position, punch holes on the installation surface according to the hole position of the u-shaped bracket and drive into the rubber plug (expansion tube), and fix the u-shaped bracket with screws.
2. The line lamp is embedded in the u-shaped bracket to ensure that the line lamp will not become loose.
3. The linear lamp is connected through its own male and female connector, and the male and female connection can be directly locked. Please check whether the waterproof ring connected by the male and female is properly installed before connection.The maximum serial length of the linear lamp shall not exceed the nominal value as shown
in the wiring diagram.
The installation is convenient without destroying the structure of the bridge itself. The track can be customized according to the color of the zipper, which basically does not affect the daytime effect.
As part of the urban landscape, bridges should be ornamental and decorative.

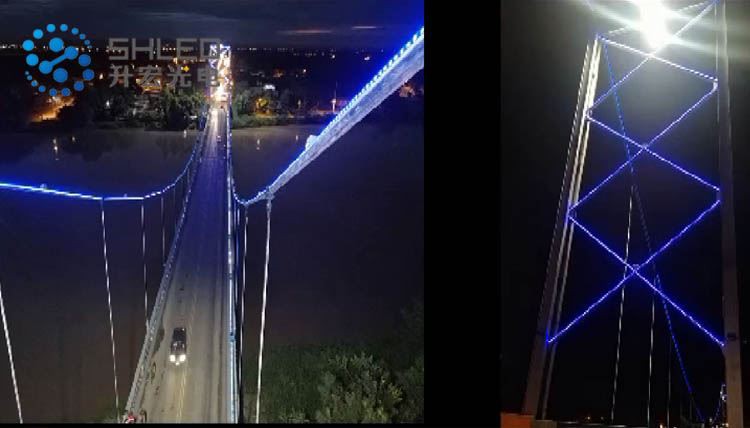

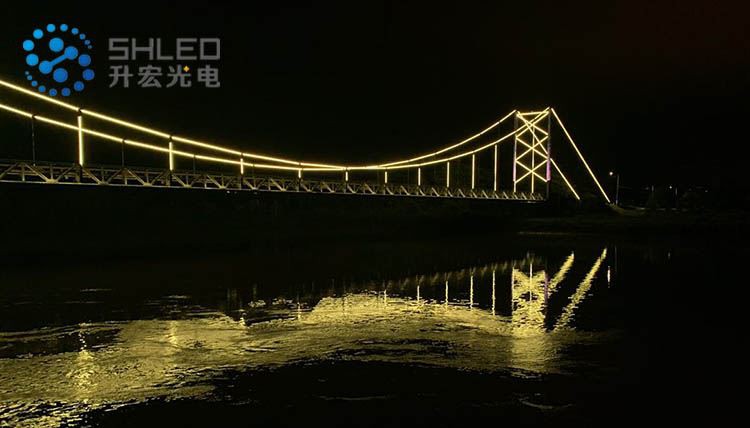

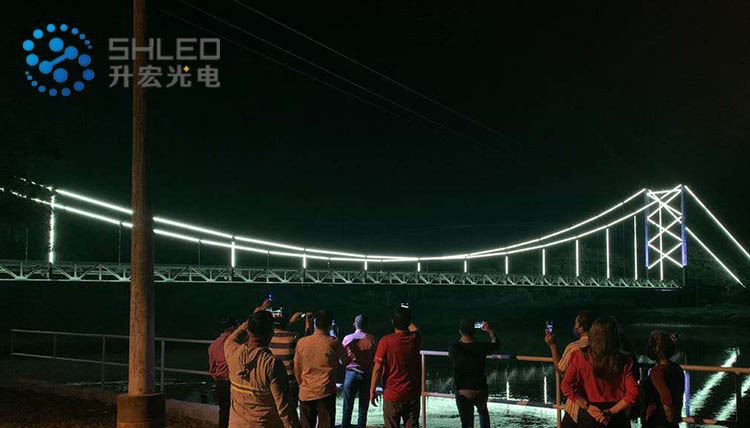

Through the operation of different modes, show the unique night lighting effects. The lights of the bridge body and the lights of the neighboring bridge group are intertwined with each other.
The implementation of the bridge lighting project will further enhance the image of Ecuador and paint a brilliant color for the development of landscape lighting in Ecuador.
