Choosing the right pixel pitch is one of the most important - and often most confusing - decisions when planning an LED mesh screen project. Pick a pitch that's too fine, and you'll waste budget.choosing the wrong pixel pitch can lead to either overspending on unnecessary resolution or underdelivering a poor visual experience that fails to attract attention.
This guide gives you a practical, no-nonsense framework to select the optimal pixel pitch for your specific project in 2026.
What Pixel Pitch Actually Means in Practical Terms

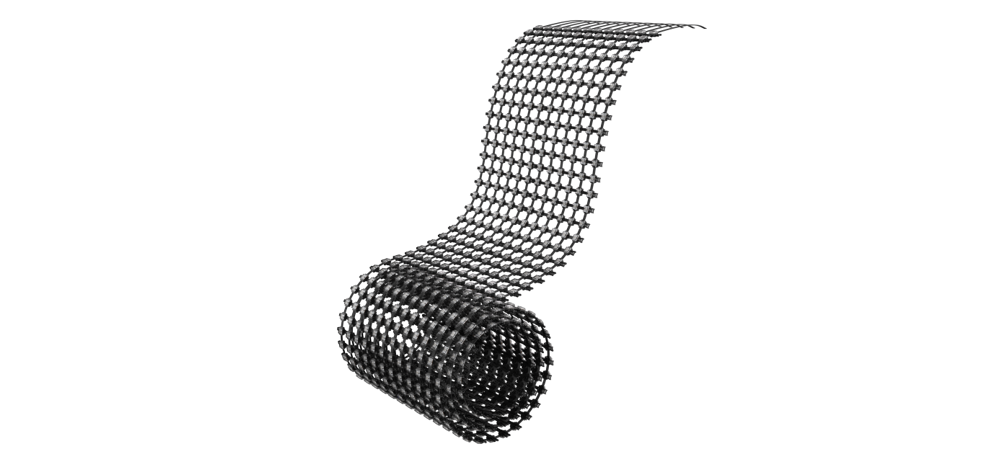

Pixel pitch refers to the distance (in millimeters) between two adjacent LED pixels, and it directly defines the resolution density of your flexible led mesh screen.For example, P50 means 50mm between pixels.
A smaller pitch means higher pixel density and better image detail, while a larger pitch results in lower resolution but improved transparency, reduced weight, and lower cost. For mesh-based LED facade systems, pixel pitch also affects wind load, installation complexity, and power consumption, making it more than just a display parameter.
Key Rule for Mesh Screens in 2026:
Optimal Viewing Distance ≈ Pixel Pitch (mm) × 0.9 – 1.2
Recommended Pixel Pitch by Viewing Distance
|
Pixel Pitch |
Best Viewing Distance |
Recommended Applications |
| P31.25-P40 | 35-45 meters | Close-range facades, high-end retail, hotels |
|
P40-P50 |
45–80 meters |
Most popular for commercial buildings |
|
P55–P80 |
60–110 meters |
High-rise buildings, bridges, large plazas |
|
P100–P125 |
90–160 meters |
Landmark tops, long-distance viewing |
|
P150+ |
140+ meters |
Super-large facades, stadium perimeters |
How to Choose Pixel Pitch: 5 Practical Questions
What is the main viewing distance?
Measure from the most common viewer position (street level, opposite building, highway, etc.).
If most people view from 40–70 meters → Choose P50.
If from 80+ meters → P80 or P100 is more cost-effective.
What content will be displayed?
Text-heavy or detailed logos → Smaller pitch (P31.25–P50)
Ambient video, abstract art, or large color blocks → P50–P80 is sufficient
Simple dynamic lighting or branding → P80–P125 works well
What is your budget range?
Every step down in pitch roughly increases cost by 30–60%.
Based on 2025, the spacing that our customers choose the most is P50-P55
How important is transparency and daylight?
Smaller pitch = lower transparency.
If preserving natural light is critical (glass curtain walls, offices, hotels), stay with P50 or larger.
What are the environmental conditions?
Coastal or high-wind areas may favor slightly larger pitch with stronger structure. Water-feature projects usually require IP68-rated P80–P125.
Common Mistakes to Avoid
Choosing pitch based only on "looks good on sample" instead of real viewing distance.
Assuming smaller pitch is always better (it's not - it increases cost and reduces transparency dramatically).
Ignoring power consumption and heat: finer pitch usually means higher power draw.
Forgetting maintenance access: very fine pitch makes single-pixel replacement more difficult.
Quick Decision Framework
Measure primary viewing distance → Multiply by 0.9–1.1 → Get ideal pitch range.
If budget allows and detail is critical → Go one step finer.
If transparency and cost are priorities → Go one step coarser.
For water features or extreme environments → Add IP68 requirement first, then choose pitch.
Final Recommendation for 2026
For 70% of typical building facade lighting projects (40–80 meter viewing distance), P50 remains the smartest choice. It delivers excellent visual quality, reasonable cost, high transparency, and strong long-term ROI.
If you're still unsure, send us your project parameters (size, main viewing distance, content type, and location). We'll provide a free pixel pitch recommendation and 3D rendering comparison within 24 hours.
