RGB 3d Led Dmx Hanging Ball String Lights

RGB 3d Led Dmx Hanging Ball String Lights

LED-3D Curtain Screen is a new kind stereoscopic screen which integrated the advantage of LED flex lighting strip-soft and foldable. It can achieve the strong 3D stereoscopic effect, abandoned the shortage of normal flexible screen and LED parallel lighting strip-the transmission error which caused by the signal interruption. It is the best choice for strong visual impact display screen both indoor and outdoor use

Send InquiryChat Now

Quick Details

50mm 3D DMX RGB LED  PIXEL BALL application:

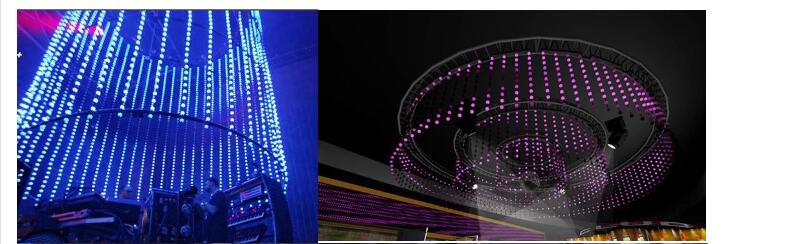

1. Disco, Night club, Stage performance that need 3D mapping effects.

2. Irregular design of body decoration,  hotels, clubs, KTV places such as polygonal walls, drop ceilings and groove design.


1 These products are made by SMD3535 RGB high brightness pixel leds.

2 Using TaiWan Epistar chip, with high brightness,lighting color consistency,good color saturation,strong stability etc.

3. Support IP65 waterproof for outdoor use , or non-waterproof if need.

4. 50mm 3D DMX RGB LED pixel ball write addresser is manually that need to write DMX address code via DMX address coder / controller.

DescriptionG35/3D   ball
Led type3535 RGB
Led quantity6
VoltageDC24V
Power1.5w
Pcs/strinig20






Product use

led light christmas ball



Power Test: Input Voltage 24V, Ta=25℃±5℃ , 30min .
Temperature Test : Input Voltage:25V 30min .
Drop Test : Free fall at 1.2m height , 10 Cycles .
Thermal Shock : -40℃(30min) ~ 100℃ (30min) , 200 Cycles .
Salt Spray Test : Salt 5% , 72H .
UV Test : UV-A, 350-400nm, 60℃ , 72H .
Switching Cycle Test : ON 25 second / OFF 5 second , 5000 cycle .
Puncture Test : DC 500V , Once .
ESD Test : 3000V , Once .
Temperature test : -30℃~65℃,RH 85% , 72H .
Tensile test : 20KG , Once .
Vibration test : Horizontal and vertical direction , 4H .
IP Rating : IP68 0.5m underwater , 48H .
Flame Retardance : UL94-V0 , 10 Cycle.
Installation way (flexible way suitable for anyway your project demand)
