Madrix DMX 3D Pixel Ball Light 3D Cube

Madrix DMX 3D Pixel Ball Light 3D Cube

Madrix DMX 3D Pixel Ball Light 3D Cube. Quick Details Light Source:LED Item Type:Point Lights LED Light Source:Epistar Input Voltage(V):DC24V Lamp Power:1.44 Lamp Luminous Flux(lm):R76/G120/B72/Y72/W216 Lamp Luminous Efficiency(lm/w):150 CRI (Ra>):90 Color Temperature(CCT):full color

Send InquiryChat Now

Quick Details

  • Item Type:Point Lights

  • LED Light Source:Epistar

  • Input Voltage(V):DC24V

  • Lamp Power:1.44

  • Lamp Luminous Efficiency(lm/w):150

  • CRI (Ra>):85

  • Color Temperature(CCT):full color


Packaging & Delivery

  • 1.Payment methods:T/T,Western Union

  • 30% deposit and 70% balance before shipment

  • 2.Lead time:3-5 working days,subject to the order quantity

  • 3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc

  • 4.MOQ:small order is available


Product Description

Madrix DMX 3D Pixel Ball Light 3D Cube


50

Item:  3D luminous ball

IC type:UCS1903/WS2811

LED type: 3535RGB, 6 pcs

IP grade: IP65, using irrigation methods sealing glue

Bulb Diameter: 35MM/50MM/28MM/32MM/20MM

Working voltage: DC24V/12V

Power: 1.44W/pc

Line length and per string  can be customized



Company Information

SH LED established in 2009,is a professional high tech Led enterprises engaged in R&D,production sales and service .

Company have been one of the largest manufacturers in led pixel light,landscape lighting, various LED lighting festival, and building lighting projects.



Application:

it can use in the bridges,hotels,ktv bars,theme park sect decoration,it is a new type energy conservation and environmental protection lights for decoration.

3D

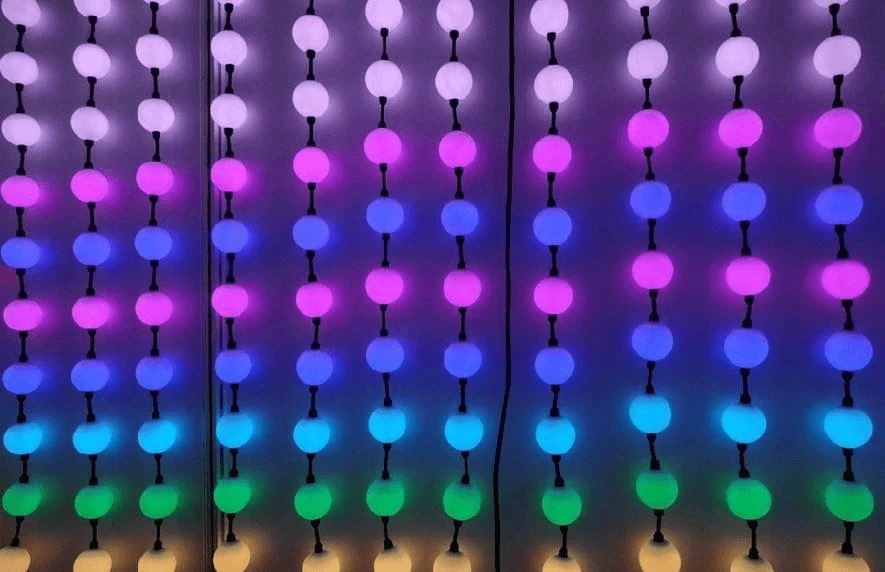

360 pixel led ball lights

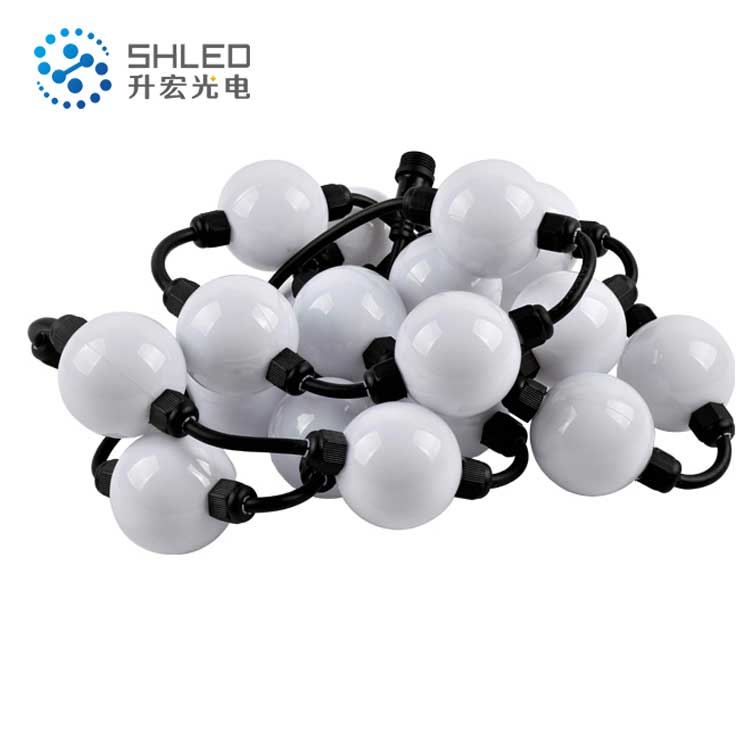

360 led pixel ball

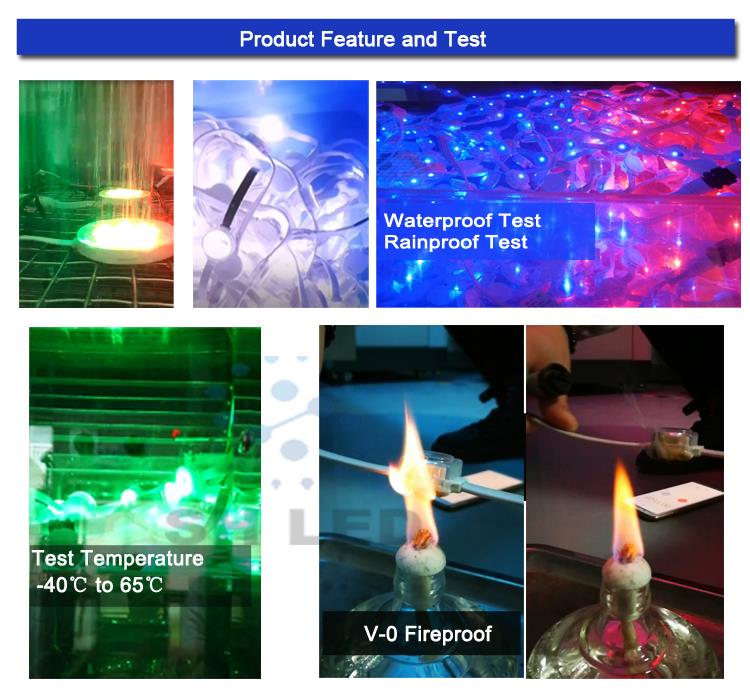

Power Test: Input Voltage 24V, Ta=25℃±5℃ , 30min .
Temperature Test : Input Voltage:25V 30min .
Drop Test : Free fall at 1.2m height , 10 Cycles .
Thermal Shock : -40℃(30min) ~ 100℃ (30min) , 200 Cycles .
Salt Spray Test : Salt 5% , 72H .
UV Test : UV-A, 350-400nm, 60℃ , 72H .
Switching Cycle Test : ON 25 second / OFF 5 second , 5000 cycle .
Puncture Test : DC 500V , Once .
ESD Test : 3000V , Once .
Temperature test : -30℃~65℃,RH 85% , 72H .
Tensile test : 20KG , Once .
Vibration test : Horizontal and vertical direction , 4H .
IP Rating : IP68 0.5m underwater , 48H .
Flame Retardance : UL94-V0 , 10 Cycle.
Installation way (flexible way suitable for anyway your project demand)
