Shenzhen SHLED Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of led mesh screen for building facade in China, also supports customized service. Welcome to wholesale high quality led mesh screen for building facade at competitive price from our factory.
Products Description

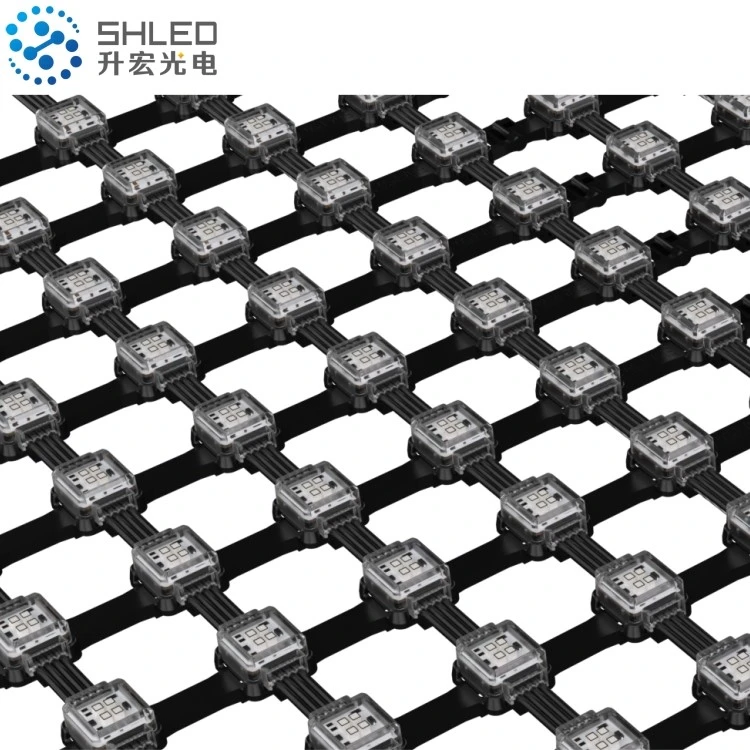

Are you looking for a flexible mehs screen for building facades that can play text and videos clearly during the day? Our led mesh screen for building facade is perfect for you. Compared to traditional display screen, it has significant advantages in weight, heat dissipation, transparency, and installation methods,
The weight of the P150-P31.25 led mesh screen is between 1.2-10kg/㎡. Due to the grid design of the Led mesh screen for building facade , the distance between the two lights is large enough to allow wind to penetrate through the middle. The heat dissipation is 70% better than that of the display screen, and the transparency can reach 30-87%. and installation is also very simple, without the need to build additional steel structures. Only a 2mm thick steel wire rope and lock buckle are needed to fix the upper and lower ends of the led meshscreen, greatly reducing installation costs and accessory costs.
Products Description
| Product Model | SHLED-E18 |
| Voltage | DC12V/DC24V |
| Power | 0.7W/1W |
| Number of LED beads | 2lamps/4lamps/6lamps |
| IP Grade | IP67 |
| Control mode | SPI |
| Display color | RGB |
| Operating Temperature | -20 to 60℃ |
| working life | ≥50000H |
| Installation Method | Wire rope |
Products advantages

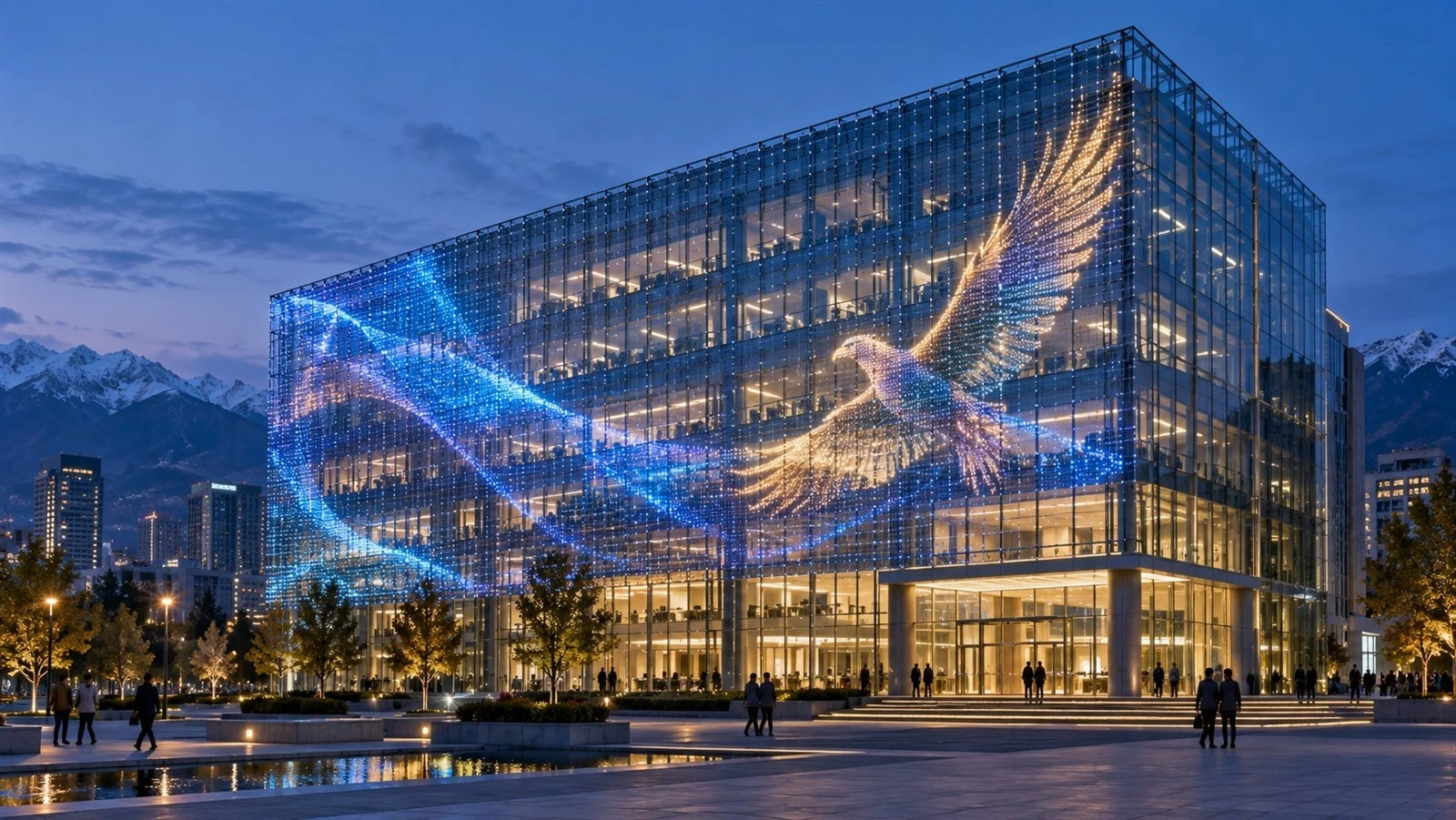

1.High permeability
There is a large gap between the two point lights, which will not completely block the glass curtain wall, and is beneficial for preserving indoor lighting, visibility, and the original appearance of the building. The transparency is between 30% to 87%

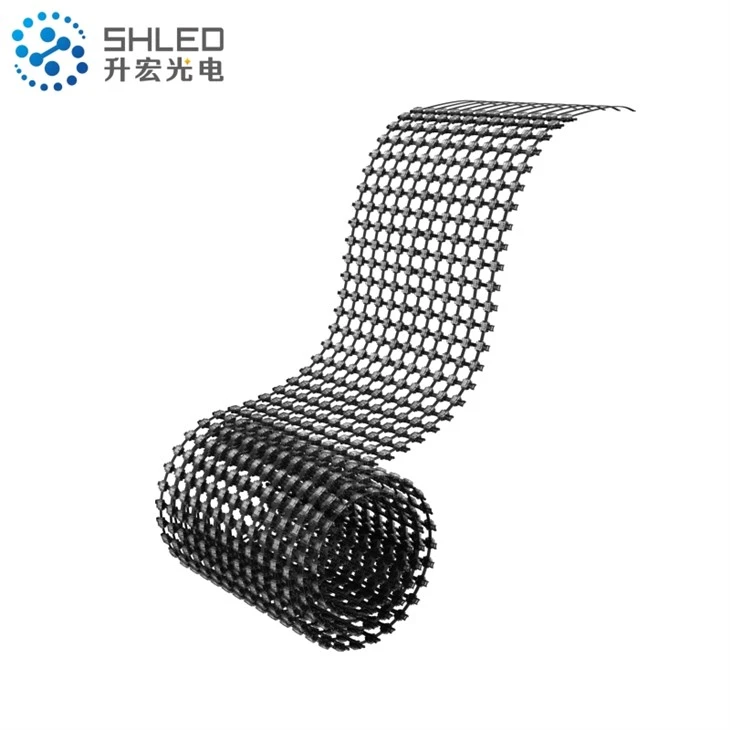

2.Flexibility and bending
LED mesh screen body can adapt to curved, cylindrical, and wavy building surfaces, reducing the splicing faults caused by traditional hard screens when installed on curved surfaces.
3.Reduce wind load
The open structure of the grid screen allows some airflow to pass through, which can reduce the pressure of strong winds on the screen body and installation structure compared to a closed box screen.
4.Easy to install
The mesh screen body can adopt a long or large modular structure, which is fixed by tightening the top and bottom steel wire ropes to reduce complex steel structures and a large amount of box assembly work.

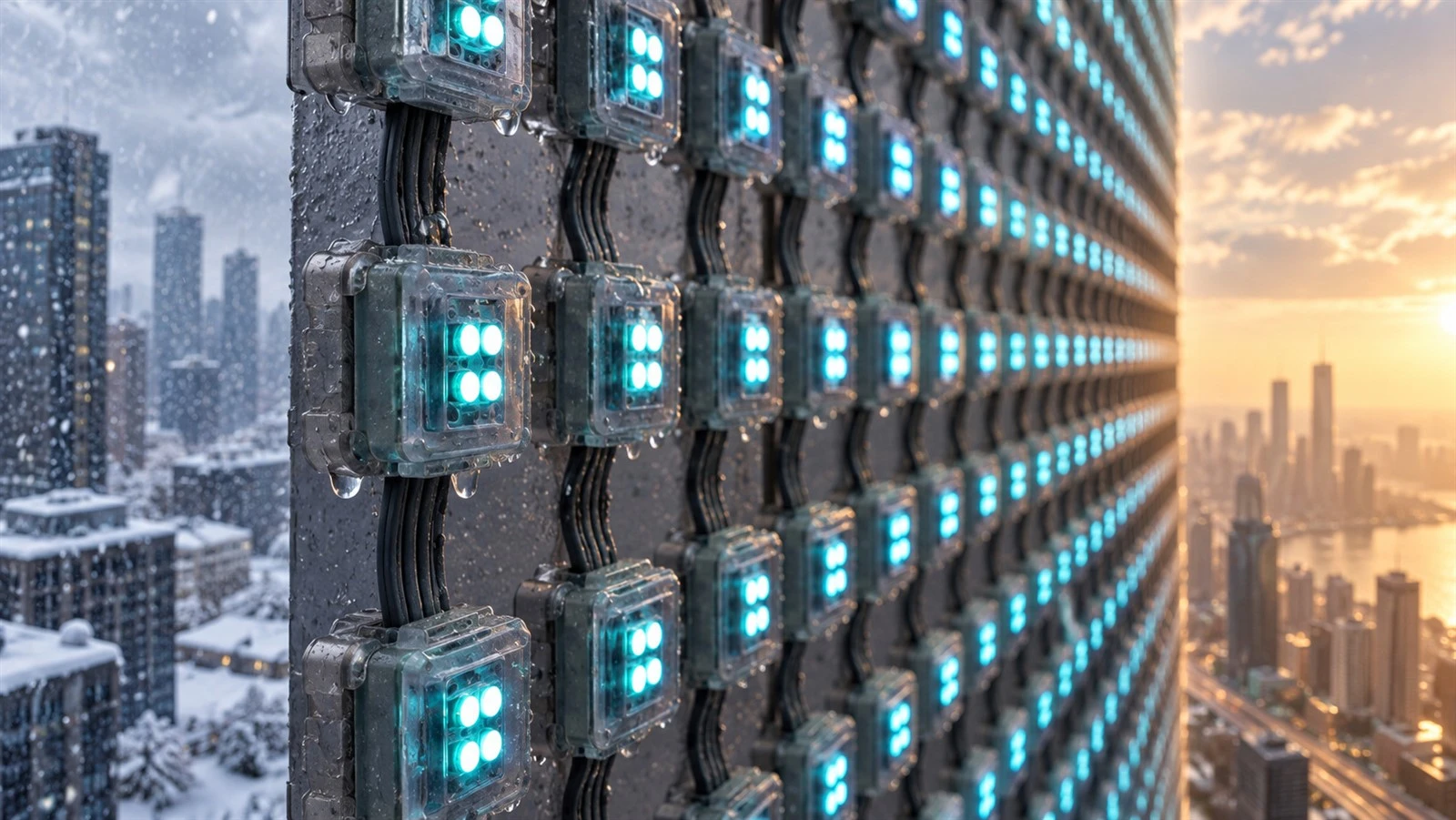

5.Strong outdoor weather resistance
Sealed led point lights and waterproof joints can withstand rainwater and moisture, making them suitable for long-term deployment on building facades. It can work in harsh environments such as Saudi Arabia, Russia, etc., ranging from -20 ° C to 60 ° C

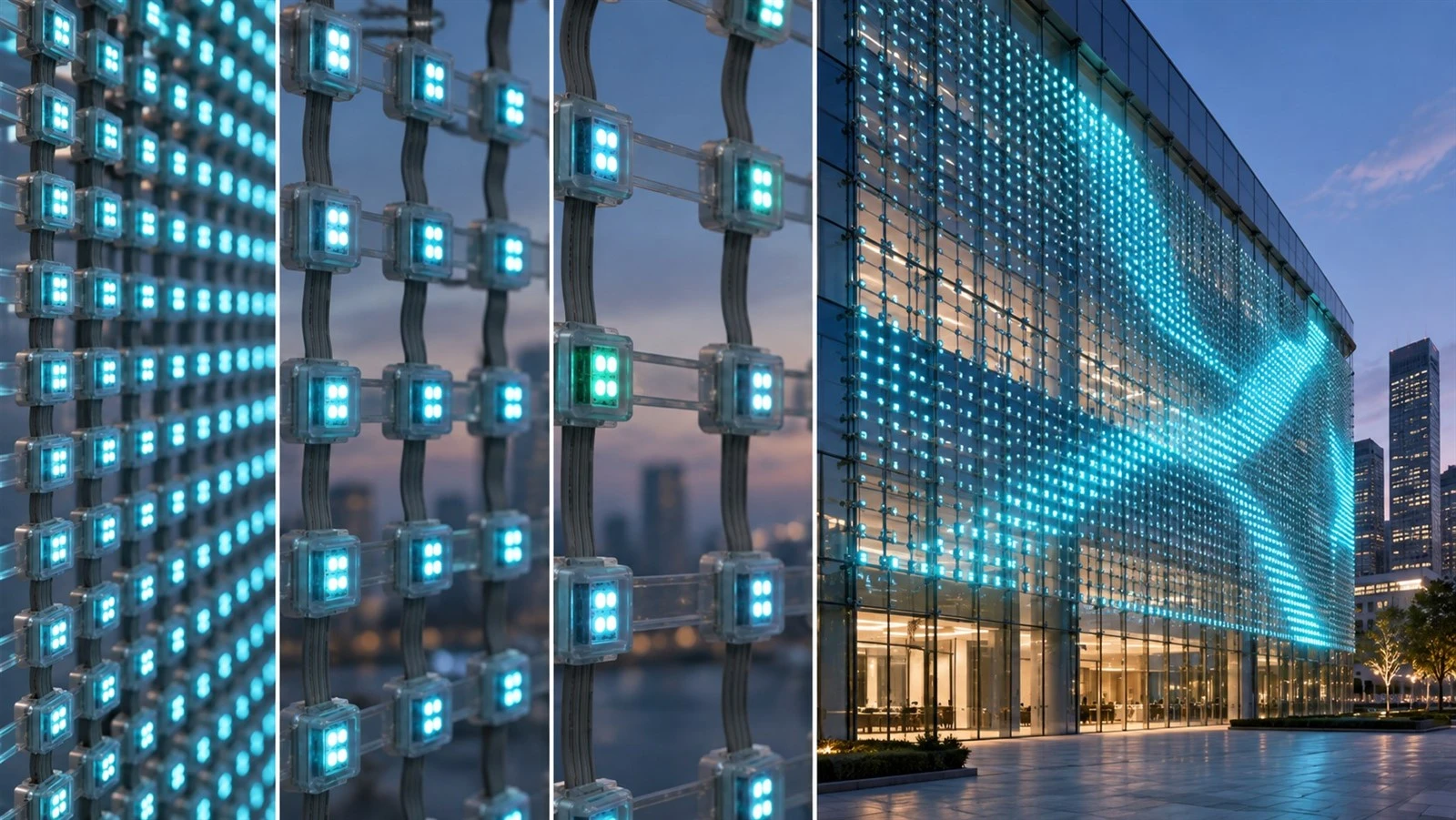

6.Different pixel ptich options and sizes can be customized
P31.25, P40, P50, P55, P62.5, P80, P100, P125, P150 can be selected based on viewing distance, light transmission requirements, budget, and building area, and customized production can be carried out according to project dimensions.

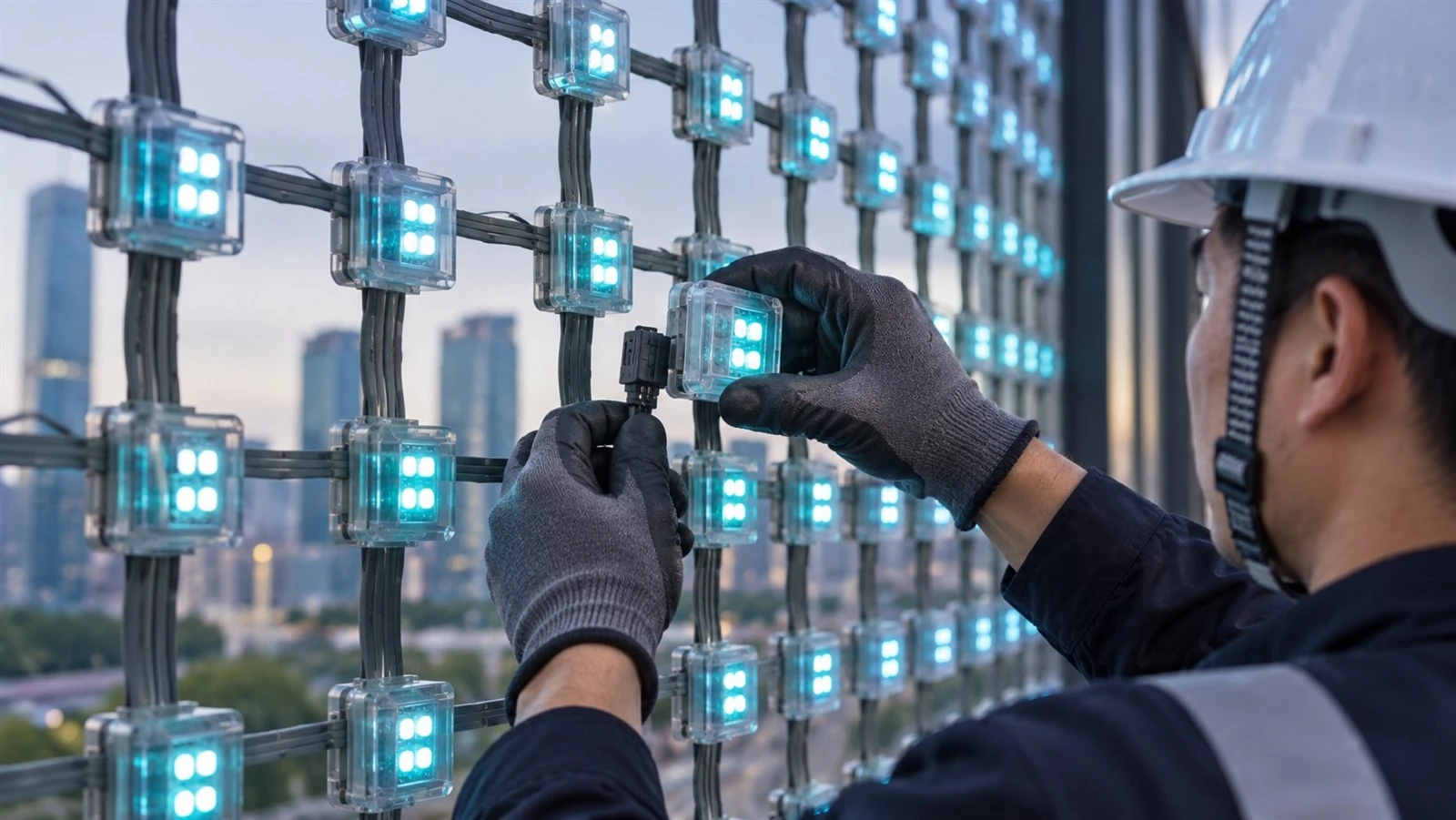

7.Convenient single point maintenance
SPI control mode, when there is a problem with independent point light or local light strips, the fault location can be checked and replaced without dismantling the entire large display box.

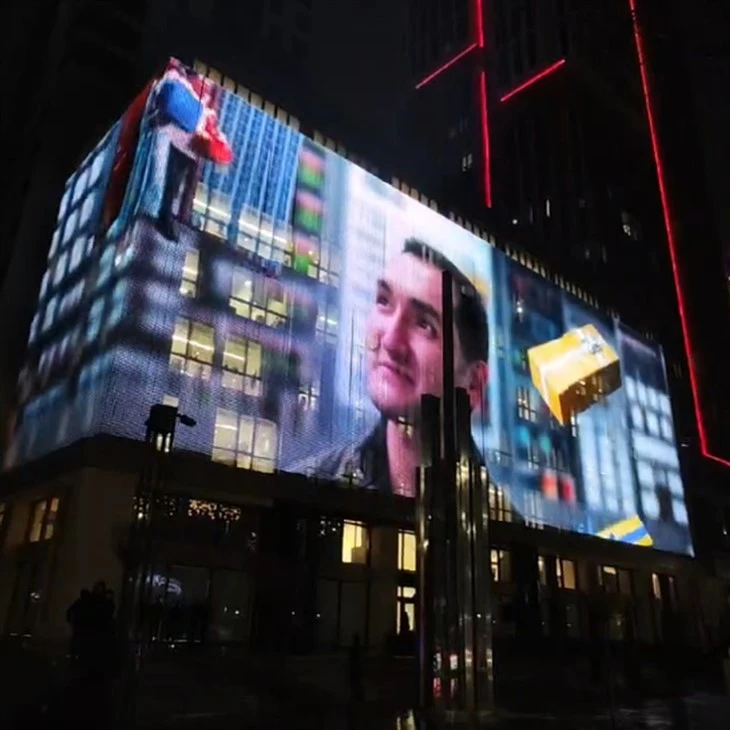

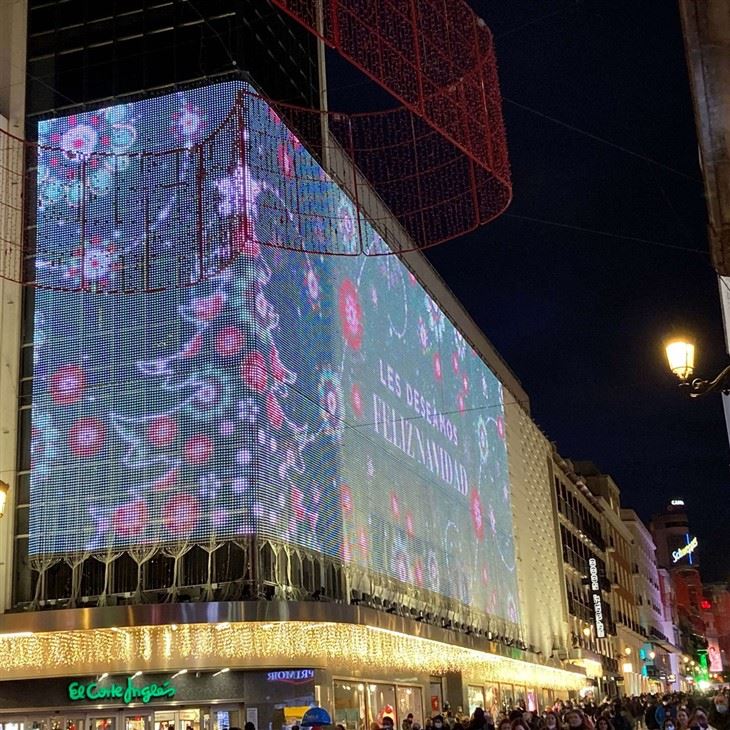

Product Applications
How Is Our LED Mesh Screen Installed?

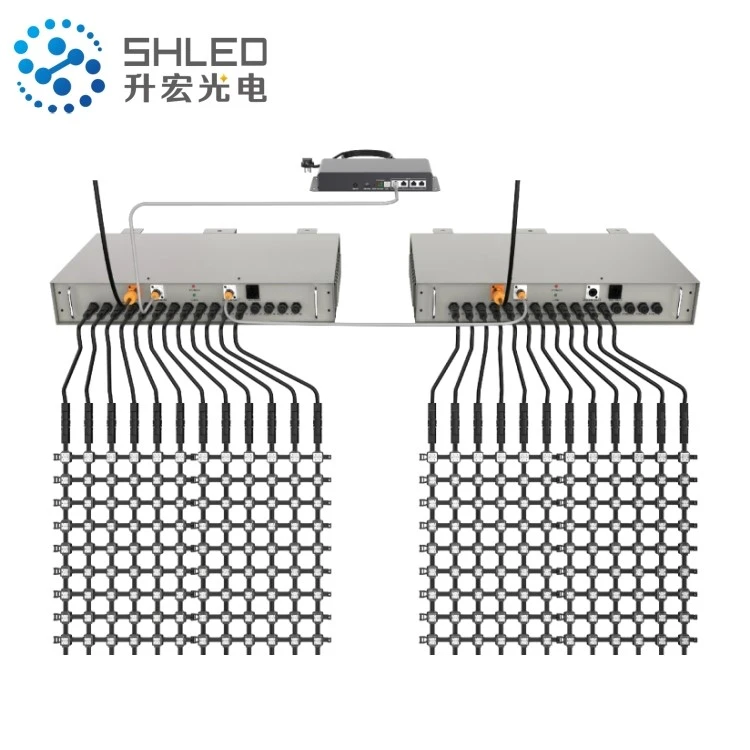

Our LED mesh screens are pre-assembled into screens at the factory. On site, installers mount the screens, join adjacent sections, and connect each screen's plugs to an intelligent sub-control box.
The sub-control box integrates signal distribution and power supply, so the mesh screens do not need separate power connections. After connecting the sub-control box to the main controller with an Ethernet cable and powering and configuring the system, the screen is ready to display video, text, and other visual content.
SHLED Introduction
With 16 years dedicated to outdoor architectural facade lighting solutions, SHLED is a trusted LED manufacturer for global facade contractors and media facade integrators.
We produce high-performance LED pixel points, LED mesh displays, linear lights, wall washers and floodlights, engineered for harsh outdoor environments. Our fixtures are rigorously tested for IP rating, temperature resistance and long-term stability, well-suited for building facades, shopping malls, bridges, hotels, stadiums, Ferris wheels, TV towers and curved dome landmarks.
Professional team
45+R&D team+40 sales team
Provide one-stop solution service, covering the entire process from project initiation to after-sales service
7x24 hours reply
24-hour online, ready to respond to customer needs at any time.
16+years
Experience
8000㎡
Factory Area
100+
Patent
3000+
Projects Completed

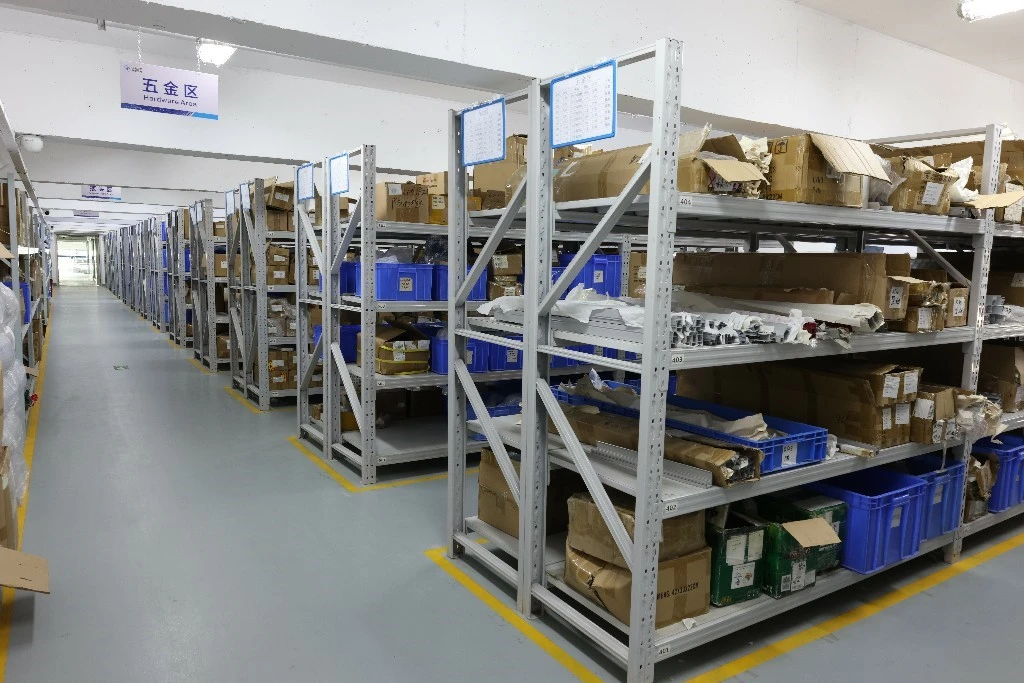

Our quality is embedded in every stage: raw material screening, in-house aging testing, strict production QC, and full compliance with international certifications. We understand the high risks of facade projects, so we provide reliable, low-maintenance lighting hardware to reduce your after-sales headache.
Beyond premium products, our full-service package stands out for facade contractors. We offer custom mold development, structural analysis, BIM & installation shop drawings, pre-sample validation, remote or on-site technical guidance, and long-term project warranty support. Our patented aluminum profile and cable-clip non-destructive mounting system simplifies complex curved & large-scale installations, cutting your construction cost and site risks.
We have delivered landmark projects across Saudi Arabia, Kazakhstan, Israel and beyond. We work hand-in-hand with facade teams to guarantee smooth project execution and durable lighting performance for your iconic building projects.
production equipment

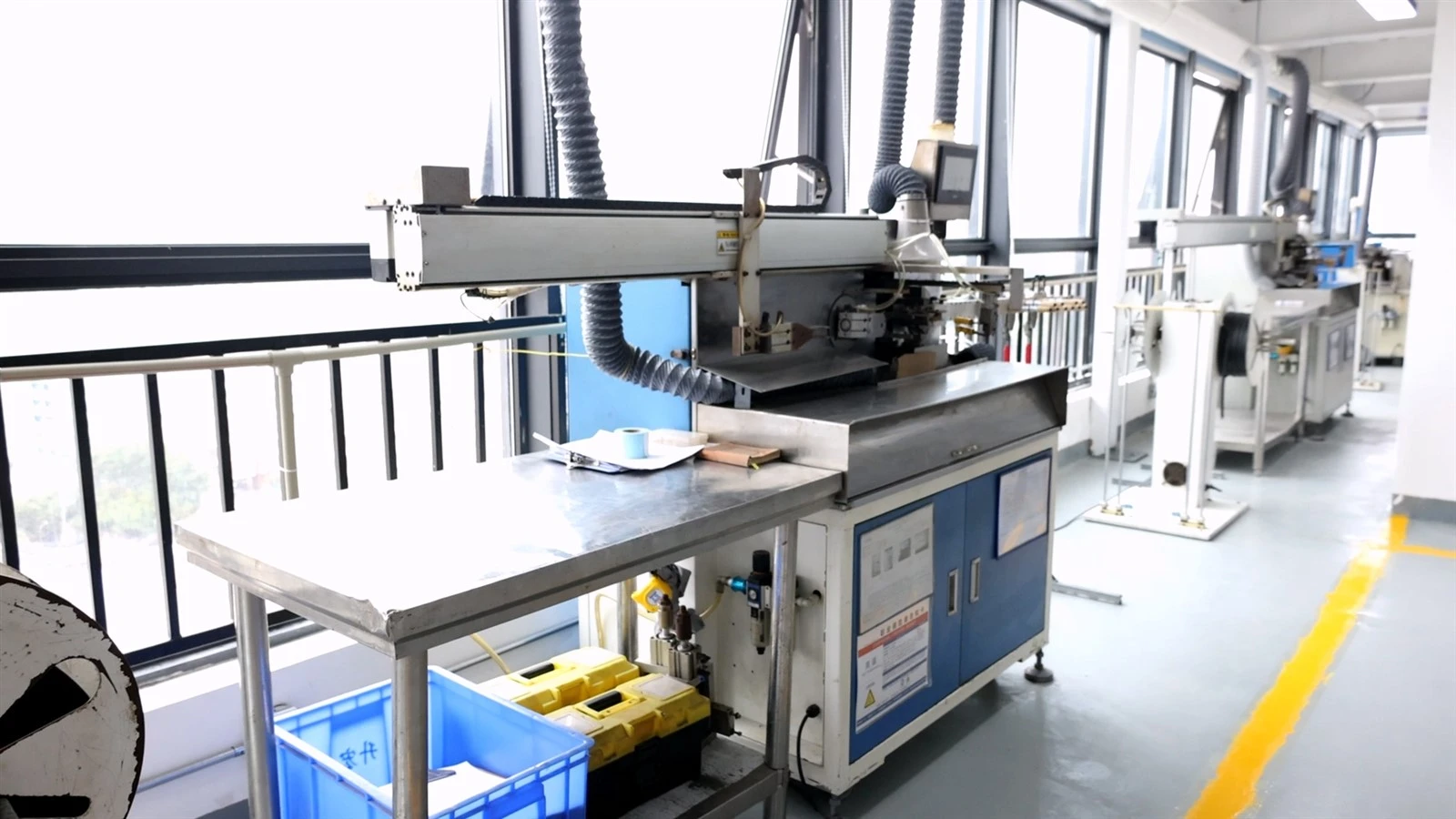

Quality is built into every stage of our manufacturing process. Our production facilities include an SMT workshop, automated dispensing equipment, wire cutting machines, and die casting machines, giving us control over key production steps. We also use waterproof testing equipment, an integrating sphere, and thermal shock, salt spray, high and low temperature, UV resistance, and flame resistance testing equipment to evaluate product performance. Through controlled production processes and rigorous testing, we work to deliver reliable lighting products for demanding applications.
Certifications
CE
ROHS
CQC
ISO14001
ISO9001
ISO45001
Production process
1.SMT
2Wire Cutting
3.Soldering Tin
4.Bonding Wire
5.Install Cover
6.Moulded Plastic
7.Dispensing
8.Testing

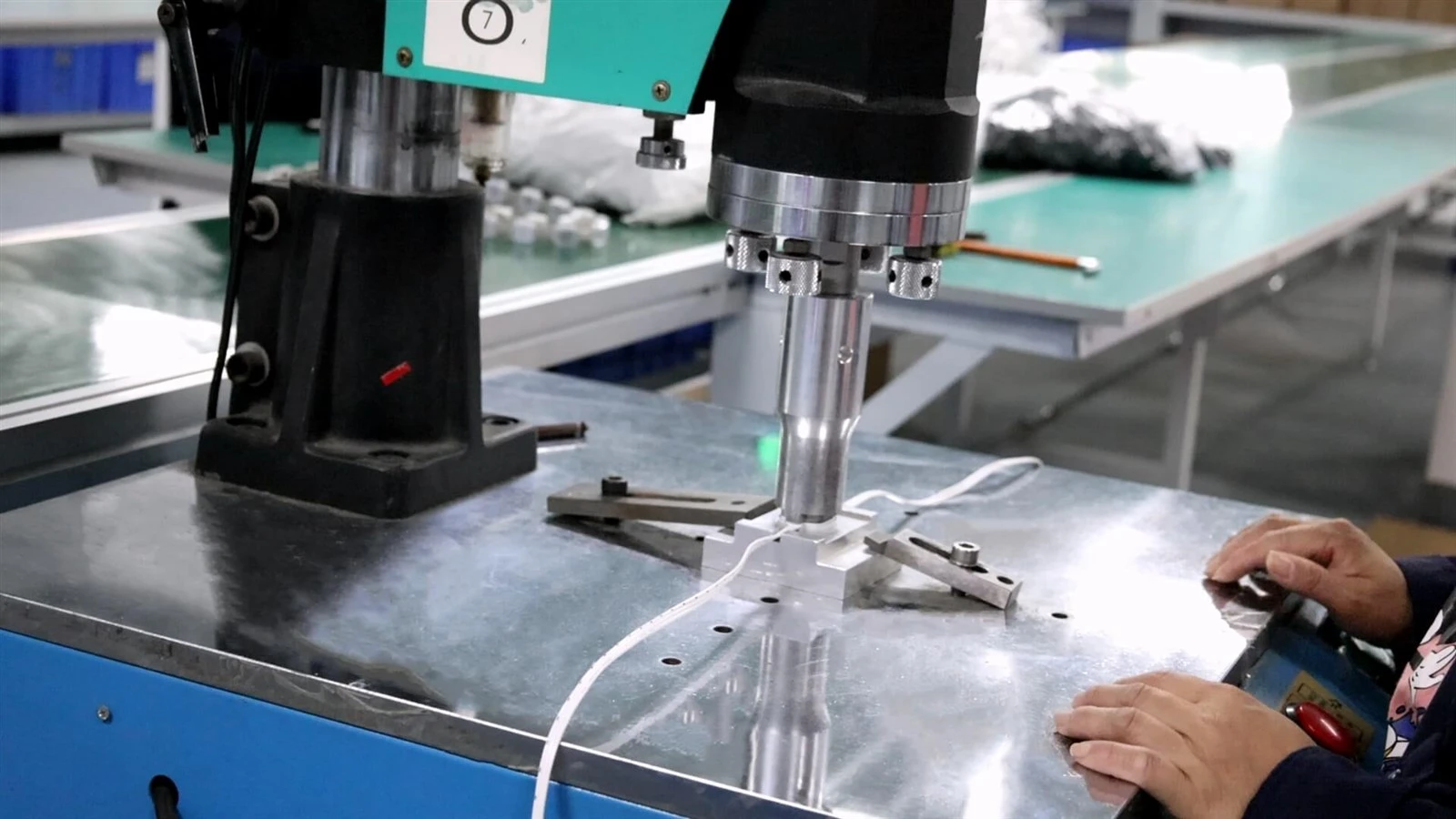

9.Ultrasonic Wave
10.Ageing
11.Packaging
12.Shipment
FAQ

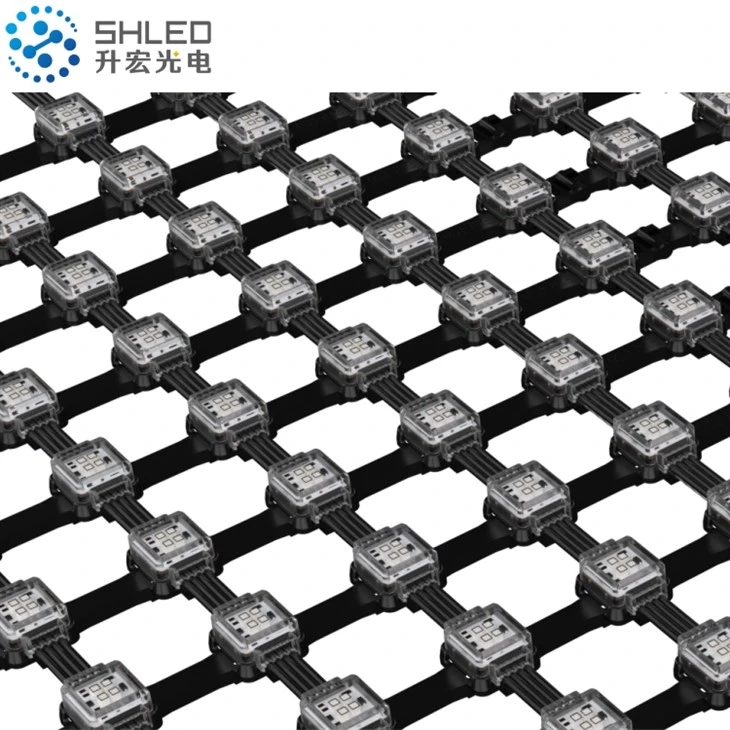

What is an LED mesh screen?
+
-
An LED mesh screen is an open-grid display with spaced LED pixels . It can show visual content while allowing part of the light and air to pass through the screen.
How is LED mesh different from an LED strip display?
+
-
The names are sometimes used differently by suppliers. In general, "LED mesh" describes the assembled open-grid display, while LED strips are components that may be used to build it. Compare the actual structure and specifications rather than the product name alone.
How do I choose the pixel pitch?
+
-
Choose pixel pitch according to the closest viewing distance and the detail your content requires. Smaller pitch gives more pixels across the same area; larger pitch is often suitable for distant viewing.
Can it display small text?
+
-
It can display text, but small letters may be difficult to read on a wide-pitch mesh screen. Use large, high-contrast lettering and check the content against the proposed screen resolution and viewing distance.
Will the led mesh screen block the windows behind it?
+
-
LED mesh screen retains open space between pixels , so some daylight and visibility remain. The actual effect depends on the product's open-area ratio, mounting components and viewing angle.
Hot Tags: led mesh screen for building facade, China, suppliers, manufacturers, wholesalers, retailer, contractor, engineering, customized, price, cost, company, for sale, RGB 22mm Waterproof Led Facade Lighting
|
Pixel Ptich |
P31.25 |
P40 |
P50 |
P55 |
P62.5 |
P80 |
P100 |
P125 |
P150 |
|
Pixel/Square |
1024 |
625 |
400 |
331 |
256 |
156 |
100 |
64 |
44 |
|
Permeability |
29.8% |
46.7% |
58.3% |
62.4% |
67.2% |
74.8% |
80% |
84.2% |
86.9% |
|
Weight/㎡ |
10kg |
6.7kg |
4.9kg |
4.2kg |
3.5kg |
2.5kg |
1.7kg |
1.4kg |
1.2kg |
|
E18-2lamp |
3911.7 |
2387 |
1528 |
1262 |
977 |
596 |
382 |
244 |
169 |
|
E18-4lamp |
5888.0 |
3593 |
2300 |
1900 |
1472 |
898 |
575 |
368 |
255 |
|
E18-6lamp |
10854 |
6625 |
4240 |
3504 |
2713 |
1656 |
1060 |
678 |
471 |
|
E18-H |
14704 |
9000 |
6000 |
4800 |
3700 |
2300 |
1500 |
1000 |
650 |
