Shenzhen SHLED Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of transparent media facade led mesh screen in China, also supports customized service. Welcome to wholesale high quality transparent media facade led mesh screen at competitive price from our factory.

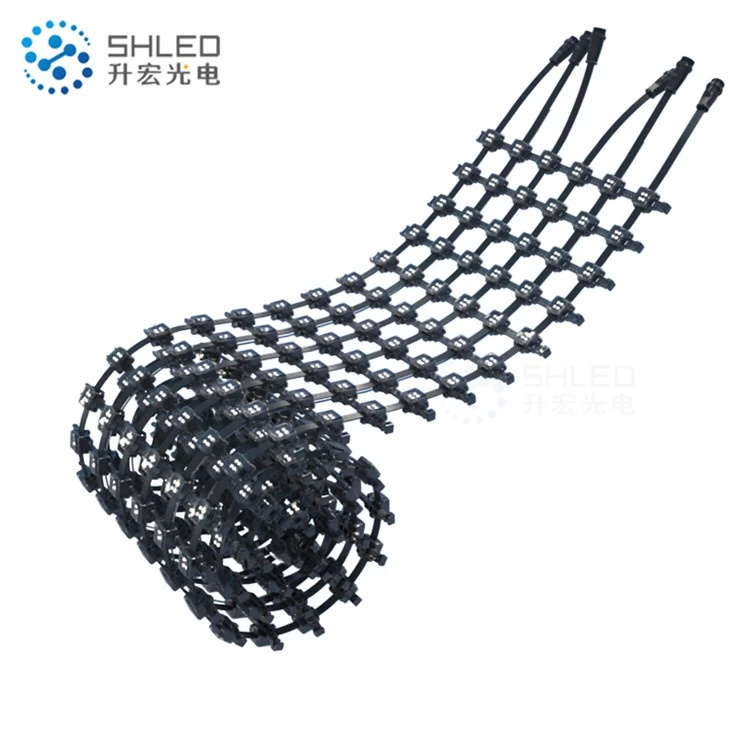

Transparent Media Facade Lighting Led Mesh Screen
The display unit is strip-shaped, and the assembly kit adopts professional aluminum type, which can be assembled horizontally, vertically, and diagonally, and the display unit is connected by waterproof joints.
Our advantages:
1.wide range of LED designs;
2.reasonable price of the led mesh screen;
3.drawing up individual projects;
4.extensive experience in providing services in the manufacture of LED technology;
5.speed of execution of orders.
Specification
| Model: | Led Mesh Screen-E10A |
Voltage: | DC24V |
Power: | 1.4W |
LED Type & Qty: | SMD 3535 RGB*4 |
Chip Type: | UCS5603A |
Control mode: | DMX / SPI |
Shell Material: | PC |
Gray Level: | 8 Bit 256 grade |
IP Grade: | IP67 |
Brightness: | ≥5000MCD |
Lifespan: | ≥50000H |
Beam Angle: | ≥120° |
Work Temp: | -20℃~+60℃ |
Store Temp: | -40℃~+75℃ |
installation diagram
Application
such designs are used for advertising purposes. The information broadcast with their help becomes available to a large number of people. Broadcasting is carried out around the clock. A bright, dynamic picture is displayed on the screen. Such advertising is well received by consumers, which makes LED structures a highly effective advertising tool.
In order to ensure sufficient brightness of the outdoor reality project pixel, the front of the module is sealed with silicone potting for waterproofing. The color of the silicone can be required for safety engineering, and the color card is matched with the color card to make the color perfectly coordinated with the exterior color of the building.
