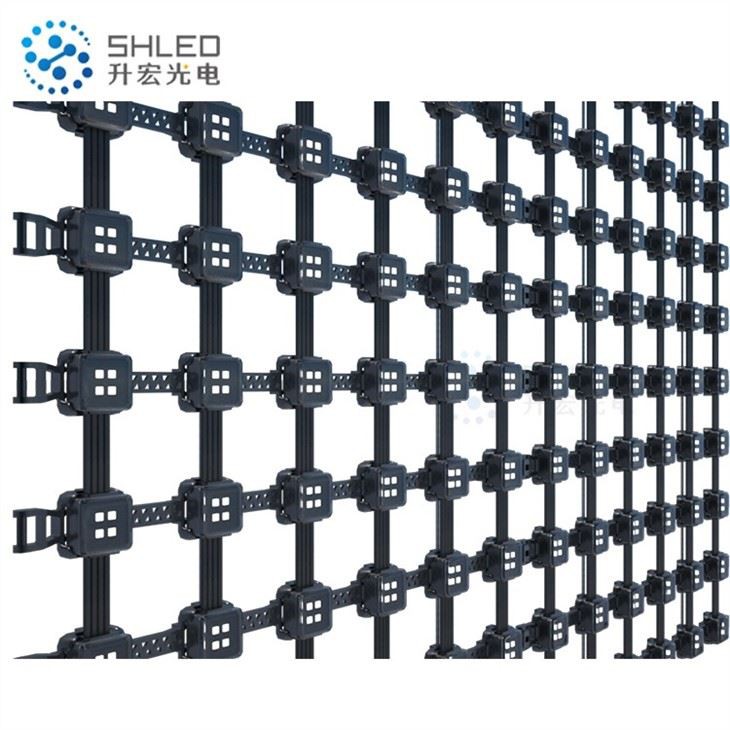

High Quality RGB LED Pixel Mesh Screen For Media Facade

High Quality DMX LED Pixel Mesh Screen For Media Facade

Details:

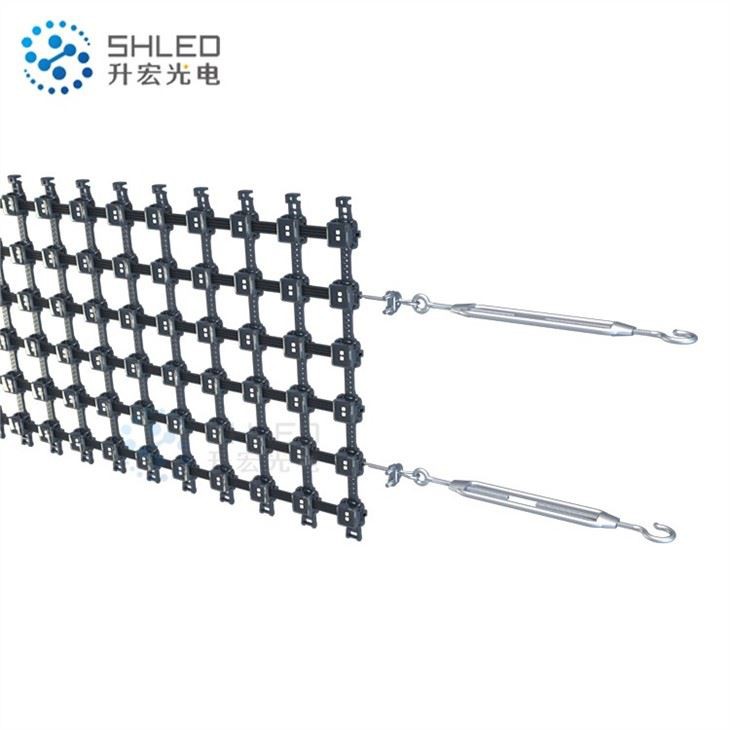

1.High Transparency: does not affect the ambient light and air circulation 2.Light and thin: flexible mesh structure, digital lattice light source, screen light and thin 3.Easy installation: mesh structure, flexible connection, can be folded, rolled, and irregularly shaped, hanging installation, easy to arrange 4.Low energy consumption: new lamp beads, high brightness, low power consumption, small glare, no radiation, recyclable 5.High protection: IP67, rain and snow resistance, working temperature range -30 ℃ ~ 60 ℃, can be used indoors and outdoors 6.Good operation: embedded wireless control technology, eliminating tedious wiring, special software, easy to edit and demonstrate the content

Send Inquiry

Download

Description

Technical Parameters

Shenzhen SHLED Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of high quality rgb led pixel mesh screen for media facade in China, also supports customized service. Welcome to wholesale high quality high quality rgb led pixel mesh screen for media facade at competitive price from our factory.

Specification

Model:	E10A
Voltage:	DC12V-24V
Power:	0.7W/1.44W
LED Type & Qty:	SMD 3535 RGB * 2pcs/SMD 2727 RGB * 4pcs
Chip Type:	UCS5603A
Control mode:	SPI/Breakup
Shell Material:	Engineer plastic/PC
Gray Level:	12 Bit 4096 grade
IP Grade:	IP68
Brightness:	≥4800CD
wavelength:	R : 615-630nm G : 525-545nm B : 460-480nm
Chip Brand:	Epistar
Lifespan:	≥30000H
Beam Angle:	≥120°
Work Temp:	-20℃~+60℃
Store Temp:	-40℃~+75℃

Reliability Test Item And Conditions

TEST ITEM	Test Conditions	Test Duration	Judgement standard
Power Test	Input Voltage 12V, Ta=25℃±5℃	30min	Wattage 0.65-0.75W
Temperature Test	Input Voltage: 12.5V with white color	30min	≤60℃
Drop Test	Free fall at 1.2m height	10 Cycles	No damage to the appearance, normal function
Thermal Shock	-40℃(30min) ~ 100℃ (30min)	200 Cycles	No damage to the appearance, normal function
Salt Spray Test	5% NaCl	72H	The material is non-corrosive and functional
Anti-UV Test	UV-A, 350-400nm, 60℃	72H	The material is free from aging and discoloration, functioning normally
Switching Cycle Test	ON 25 second / OFF 5 second, ON/OFF cycle	48H / 5000 cycle	Functioning normally
Voltage Test	DC 500V	Once	Functioning normally
ESD Test	3000V	Once	Functioning normally
High and Low Temperature Test	-30℃~65℃,RH 85%	72H	Functioning normally
Tensile Test	Input/output line, pull force 20KG or more	Once	The wire is not broken and functions normally
Vibration Test	Horizontal and vertical direction	4H	Functioning normally
IP Rating	IP68 0.5m underwater	48H	Functioning normally
Flame Retardant Rating	Refer to UL94-V0 standard	10 Cycle	Self-extinguishing from the fire, no burning matter falling

E10A 4 (11) E10A 4 (17) E10A 4 (2)
