Christmas Decor Lighting Ws2811 3d Pixel Led Ball

Christmas Decor Lighting Ws2811 3d Pixel Led Ball

Christmas Decor Lighting Ws2811 3d Pixel Led Ball.led pixel ball string light, a combination of plastic and PCB board and pouches line ( high temperature, cold -resistant UV) from 50mm full-color opal sphere 220V comes with the program full-color point source , the control chip UCS1903 or DMX512.

Send InquiryChat Now

Addressable Individually each  DMX pixel led christmas light string lights  decorative balls

LED-3D Curtain Screen is a new kind stereoscopic screen which integrated the advantage of LED flex lighting strip-soft and foldable. It can achieve the strong 3D stereoscopic effect, abandoned the shortage of normal flexible screen and LED parallel lighting strip-the transmission error which caused by the signal interruption. It is the best choice for strong visual impact display screen both indoor and outdoor use.

Item:  3D luminous ball

IC type:UCS1903/WS2811

LED type: 3535RGB, 6 pcs

IP grade: IP65, using irrigation methods sealing glue

Bulb Diameter: 35MM/50MM/32MM

Working voltage: DC24V

Power: 1.44W/pcs

Line length can be customized

Feature:

 1,Has a perfect optical design, 360 degrees light, high brightness.

 2,Work without flicker, no noise.

 3,Uniform and gentle photometric distribution, no glare design.

 4, Lifting fixed installation, easy to operate.

 5,High light efficiency, more energy efficient.

 6,DC24V input, can be directly in contact with the human body, safe operation, easy maintenance.

 7,High-quality PC shell material, anti-ultraviolet, anti-aging, high and low temperature resistance.

 8,SD card offline control, online control video playback, up to 32-4096 gray, colorful rich.

3d pixel led ball (3)3d led lighting3d led ball3d stage led lighting3d led pixel ball light


Application:

Products for amusement parks, squares, stage lighting, KTV decoration, hotel decoration, curtain decoration and other landscape lighting project use, a wide range of applications.



3d stage led lighting

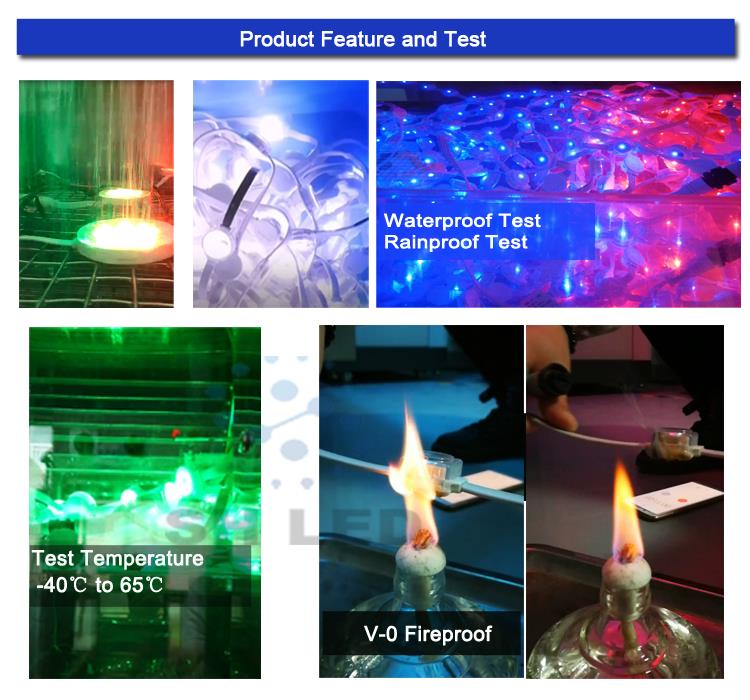

Power Test: Input Voltage 12V, Ta=25℃±5℃ , 30min .
Temperature Test : Input Voltage:13V 30min .
Drop Test : Free fall at 1.2m height , 10 Cycles .
Thermal Shock : -40℃(30min) ~ 100℃ (30min) , 200 Cycles .
Salt Spray Test : Salt 5% , 72H .
UV Test : UV-A, 350-400nm, 60℃ , 72H .
Switching Cycle Test : ON 25 second / OFF 5 second , 5000 cycle .
Puncture Test : DC 500V , Once .
ESD Test : 3000V , Once .
Temperature test : -30℃~65℃,RH 85% , 72H .
Tensile test : 20KG , Once .
Vibration test : Horizontal and vertical direction , 4H .
IP Rating : IP68 0.5m underwater , 48H .
Flame Retardance : UL94-V0 , 10 Cycle.
Christmas Decor Lighting Ws2811 3d Pixel Led Ball Installation way (flexible way suitable for anyway your project demand)
