3D Effect RGB LED Ball Light Madrix Control

3D Effect RGB LED Ball Light Madrix Control

Quick Details Light Source:LED Item Type:Point Lights LED Light Source:Epistar 5050 SMD LEDs Input Voltage(V):DC24V Lamp Power:1.44 Lamp Luminous Flux(lm):18-20 Lamp Luminous Efficiency(lm/w):20 CRI (Ra>):90 Color Temperature(CCT):3D RGB Pixel ball light Working Temperature(℃):-20 - +60...

Send InquiryChat Now

1.led pixel ball string light, a combination of plastic and PCB board and pouches line ( high temperature, cold -resistant UV) from 50mm full-color opal sphere 220V comes with the program full-color point source , the control chip UCS1903 or DMX512.

2.The 3d pixel led ball features high brightness , long life, low voltage, light is small, energy security, rich colors , beautiful appearance , easy installation.

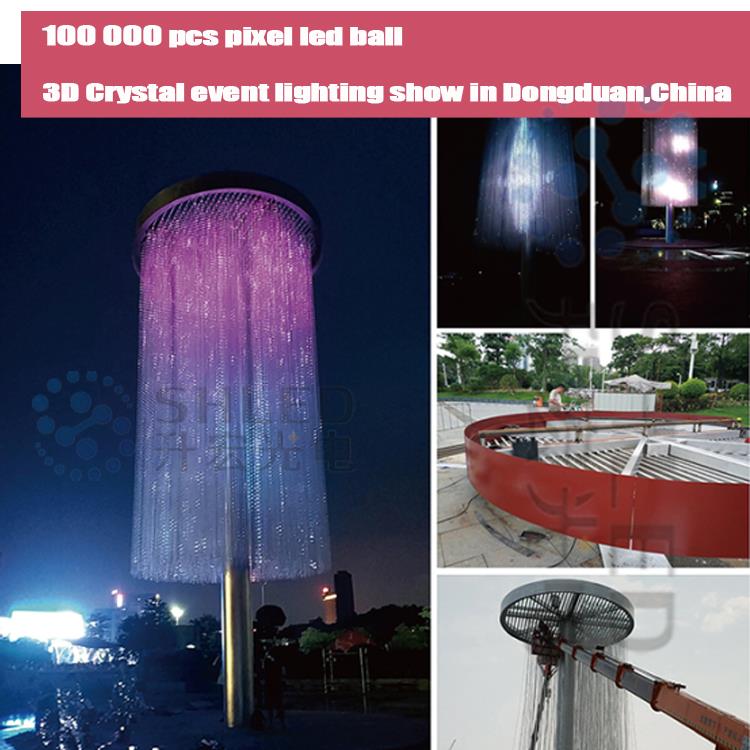

3.Widely used in hotels , stores, shopping malls decorative lighting , KTV entertainment interior decoration, garden square green trees, statues and other decorative lighting .

4.Products can achieve the effect of the water comes , chase, scan . Also available upon request external controller , made a variety of dynamic effects you want.


Item:  3D luminous ball

IC type:UCS1903/WS2811

LED type: 3535RGB, 6 pcs

IP grade: IP65, using irrigation methods sealing glue

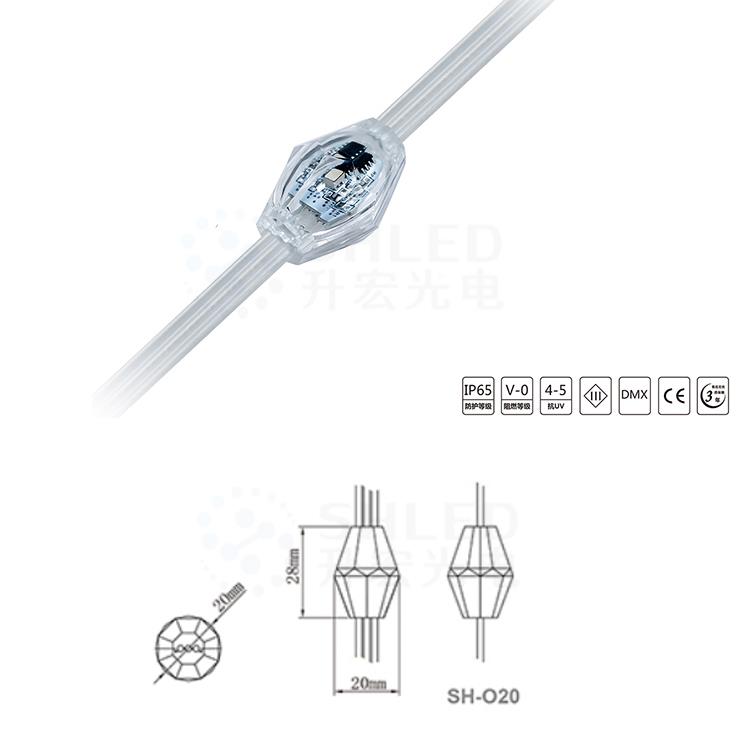

Bulb Diameter: 20mm

Working voltage: DC12V

Power: 0.6W/pcs

Line length can be customized

3D stage led ball

3D stage led ball

3D stage led ball

1 3D stage led ball

00 3D stage led ball

0 3D stage led ball


Power Test: Input Voltage 12V, Ta=25℃±5℃ , 30min .
Temperature Test : Input Voltage:13V 30min .
Drop Test : Free fall at 1.2m height , 10 Cycles .
Thermal Shock : -40℃(30min) ~ 100℃ (30min) , 200 Cycles .
Salt Spray Test : Salt 5% , 72H .
UV Test : UV-A, 350-400nm, 60℃ , 72H .
Switching Cycle Test : ON 25 second / OFF 5 second , 5000 cycle .
Puncture Test : DC 500V , Once .
ESD Test : 3000V , Once .
Temperature test : -30℃~65℃,RH 85% , 72H .
Tensile test : 20KG , Once .
Vibration test : Horizontal and vertical direction , 4H .
IP Rating : IP68 0.5m underwater , 48H .
Flame Retardance : UL94-V0 , 10 Cycle.
Installation way (flexible way suitable for anyway your project demand)
