Shenzhen SHLED Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of outdoor decorative led point light source in China, also supports customized service. Welcome to wholesale high quality outdoor decorative led point light source at competitive price from our factory.
Product Feature

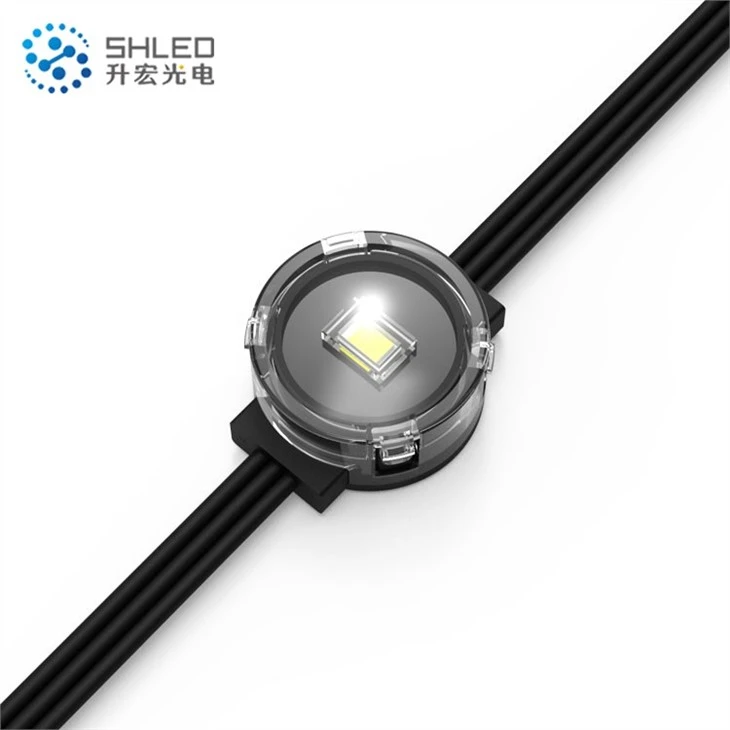

1.These led point lights products are made by SMD 3535RGB high brightness LED with big view angle.
2. Led Facade Lighting Use Taiwan Epistar LED chip, with high Brightness,light color consistency, good color saturation Strong stability etc.
3. led pixel point light With special buckle construction,for all kinds of board. Directly to install after dig the holes,easy and quickly, very convenient.
4.led point light With PU glue sealing, not easy to crack,waterproof and high product protection.
5. The wire and shell are resistant to cold, UV and flame retardant material, suitable for long-term outdoor use.
Specification
Model: | JD22 |
Voltage: | DC5V |
Power: | 0.3W |
LED Type & Qty: | SMD 3535 RGB 1pcs |
Chip Type: | UCS2903 |
Control mode: | SPI |
Shell Material: | Engineer plastic/PC |
Gray Level: | 8 Bit 256 grade |
IP Grade: | IP67 |
Brightness: | ≥2400MCD |
R : 615-630nm G : 525-545nm B : 460-480nm | |
Chip Brand: | Epistar |
Lifespan: | ≥50000H |
Beam Angle: | ≥120° |
Work Temp: | -20℃~+60℃ |
Store Temp: | -40℃~+75℃ |
Size Chart
Installation Diagram
1 Steel Wire With Bracket
2 Aluminum Profile 1
03 Aluminum Profile 2
04 Aluminum Panel
05 Bracket with Screw Fixed
Project Case
LED point light source installation, suitable for architectural lighting, media facade, large shopping malls, hotels and entertainment venues, etc.
Notes
1.The output voltage of the power supply cannot be higher than the rated voltage, otherwise it will cause damage to the luminaire.
2.Do not carry live work.
3.All power cords and wire connections should be waterproofed after soldering.
4. Non-professionals, please do not replace the controller and power supply at will, avoid wiring errors and cause malfunctions..
