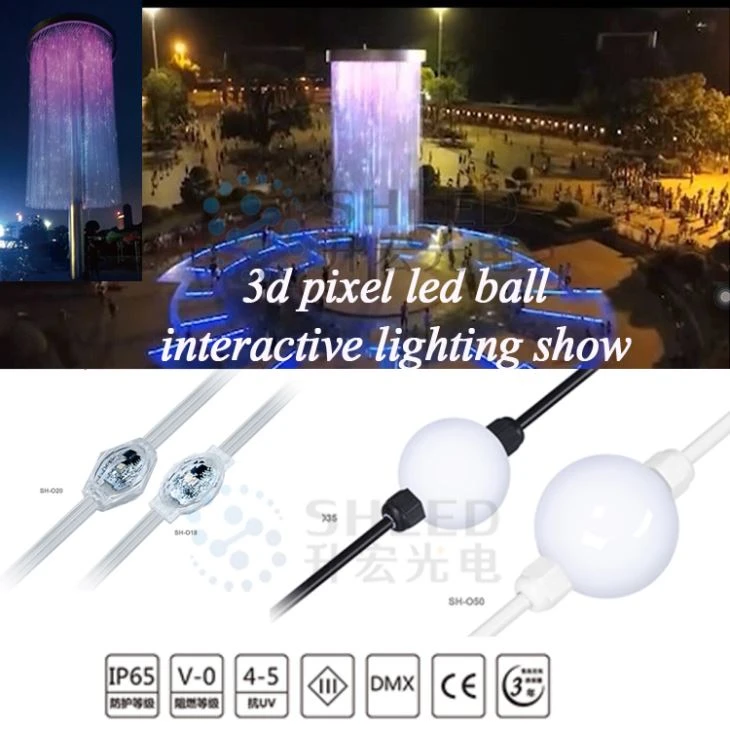

Event Lighting DC24v 3d Pixel Led Ball

Event Lighting DC24v 3d Pixel Led Ball

• IP65, easy for outdoor installation. • 360 degrees viewable with the uniform luminance. • RGB Full Colour. • Low power consumption and heat. • Easy to be connected and controlled with led decoder and DMX512 Controller. • The ball is strong and anti-wrestling. • The length can be customized. Easy to be cut and connected. • The constant current led driver makes sure the stability and long life of the DMX ball.

Send InquiryChat Now

Quick Details

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:shled

  • Model Number:SH-3D pixel led ball

  • Product name:3D led luminous  ball

  • IC type:UCS1903/DMX512

  • Light source:High Light LED 3d stage lighting pixel ball

  • Material:PC Plastic

  • Certificate:CE ROHS

  • Application:applied to billboard background, bridge,river and lake guardrail,building outline,other large dynamic light place and so on.


3d pixel led ball stage lighting

3d pixel led ball

Company Information

1.Shenzhen SH LED Technology Co. LTD

Established high-tech frim specialized in the research , development , engineering , and marketing of LED based lighting solutions .We have professional engineers always staying at the forefront of LED technology . We're especially well-placed in the field of sign lighting solutions and interior lighting .We're Located in Shenzhen of China , near Shenzhen Airport and HK with convenient transportation .

Colorful Outdoor Decoration led Christmas Light DC12V/DC24V 50MM 3D Pixel light ball





Application:

application

3D

It is a new type of energy-saving and environmental protection decorative lamp. It adopts LED cold light source to illuminate. It has built-in microcomputer chip, which can be programmed and controlled at will. Multiple simultaneous changes. Monochrome changes can also realize synchronous colorful gradient, jump, scan, and full color change of running lights. The effect and a plurality of led point light sources form a dot matrix screen. It can change various pictures, texts and animation effects. It is a supplement to the linear light source and floodlighting. The appearance is beautiful and can meet the design requirements of the dotted line surface of the building and other decoration. LED point light source uses aluminum base, heat dissipation, excellent waterproof performance, convenient installation, simple control, low-voltage power supply, safe and reliable, noble appearance, is the structure of the building, bridge, hotel, billboard, curtain wall and night light Ideal ornament.




Power Test: Input Voltage 24V, Ta=25℃±5℃ , 30min .
Temperature Test : Input Voltage:25V 30min .
Drop Test : Free fall at 1.2m height , 10 Cycles .
Thermal Shock : -40℃(30min) ~ 100℃ (30min) , 200 Cycles .
Salt Spray Test : Salt 5% , 72H .
UV Test : UV-A, 350-400nm, 60℃ , 72H .
Switching Cycle Test : ON 25 second / OFF 5 second , 5000 cycle .
Puncture Test : DC 500V , Once .
ESD Test : 3000V , Once .
Temperature test : -30℃~65℃,RH 85% , 72H .
Tensile test : 20KG , Once .
Vibration test : Horizontal and vertical direction , 4H .
IP Rating : IP68 0.5m underwater , 48H .
Flame Retardance : UL94-V0 , 10 Cycle.
Installation way (flexible way suitable for anyway your project demand)
Hot Tags: event lighting dc24v 3d pixel led ball, China, suppliers, manufacturers, wholesalers, retailer, contractor, engineering, customized, price
